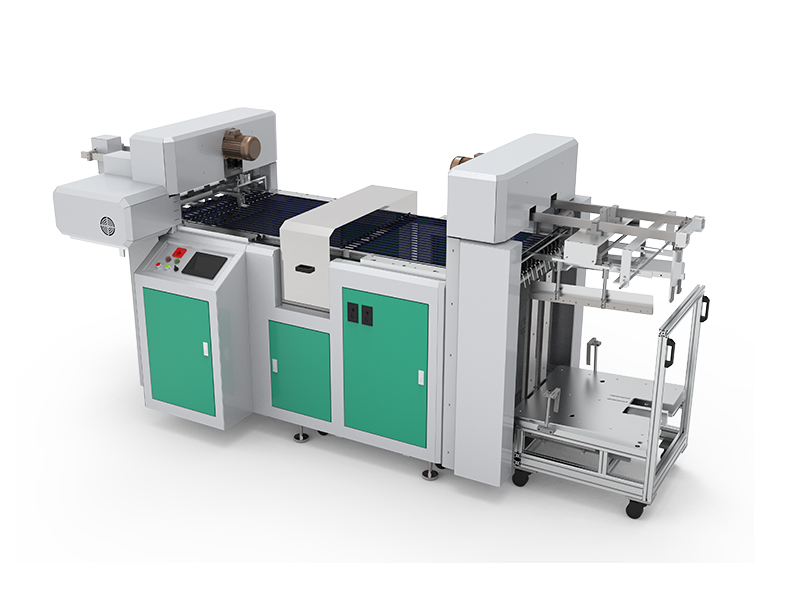

Sheet Cleaning Machine, WT-007ZCJ
This sheet cleaning machine is specially designed to eliminate static electricity and remove particles and dust from sheets of various materials such as PVC, PET and PP. Suction system ensures single sheet feeding each time, greatly enhancing production efficiency while facilitating operation and maintenance.
Specifications
| Power supply | AC 380V/50 HZ | Format | Customized |
| Total power | 4.5KW | Control | PLC control + servo system |
| Air source | 6 kg/cm2 | Operators needed | 1 |
| Air consumption | Approx. 80L/min | Dimension | L2850*W1350*H1500MM |
| Weight | 1100KG | Sheet thickness | 0.2mm~1.0mm |
| Applicable sheet materials | Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc. | Productivity | 2000~3500 Sheet/H |
- Productivity: 2000~3500 Sheet/H
- Sheet thickness: 0.2mm~1.0mm
- Format: Customized
- Operators needed: 1
- Applicable sheet materials: Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.
- Power supply: AC 380V/50 HZ
- Total power: 5KW
- Control: PLC control + servo system
- Air source: 6 kg/cm2
- Air consumption: Approx. 80L/min
- Dimension: L2850*W1350*H1500MM
- Weight: 1100KG
Features
- Automatic sheet feeding, lifting, stacking and collection, achieving unmanned operation;
- Stable sheet transporting;
- Two modules work simultaneously for static electricity elimination and dust removal, featuring optimal cleaning result and high work efficiency;
Details
-

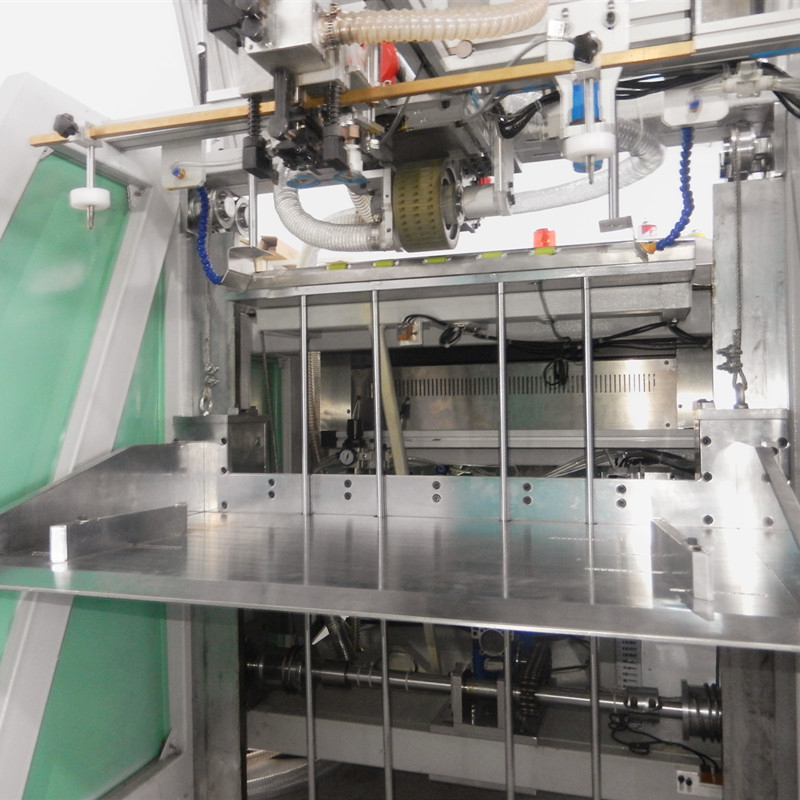

Dust removal unit -

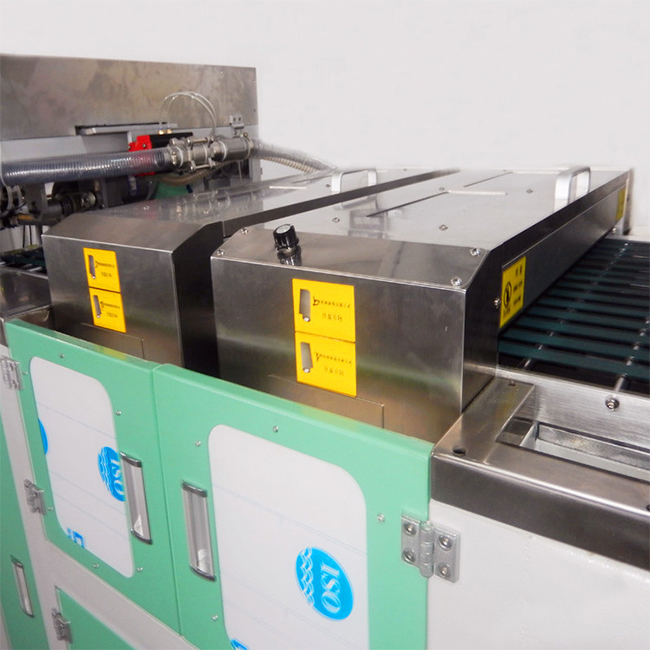

Transporting unit -

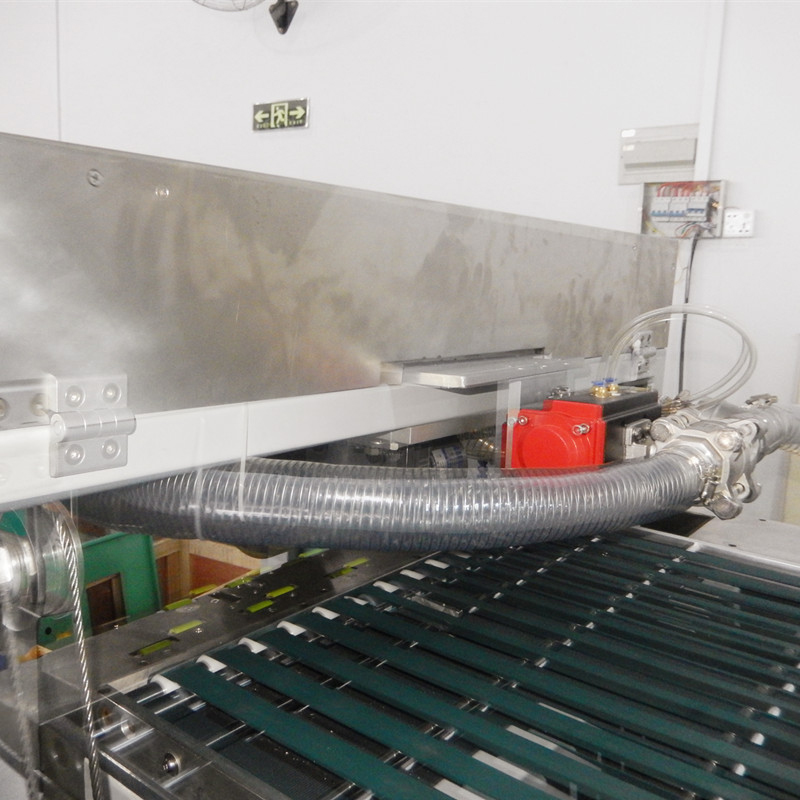

Sheet loading unit -

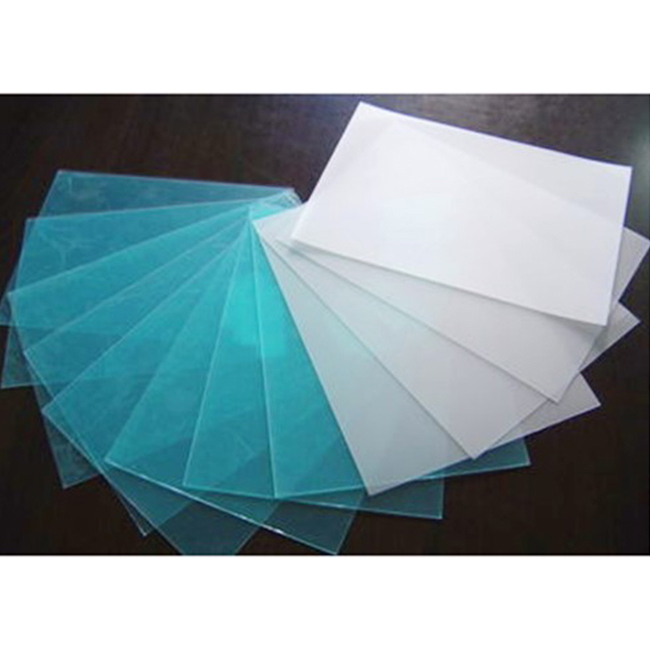

Cleaned sheet
