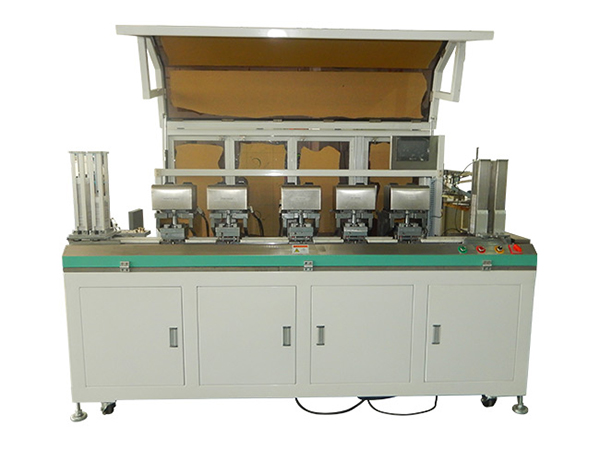

SIM Card Punching Machine, WT-007SCPM
WT-007SCPM SIM card punching machine is designed for punching and scribing a break-out line for Mini SIM (2FF), Micro SIM (3FF) Nano SIM (4FF) cards based on the standard SIM card (1FF). This SIM card punching machine can be configured with vision inspection system for verification of card punching result. Each punch station can individually run or stop according to actual application needs.
Samples
-

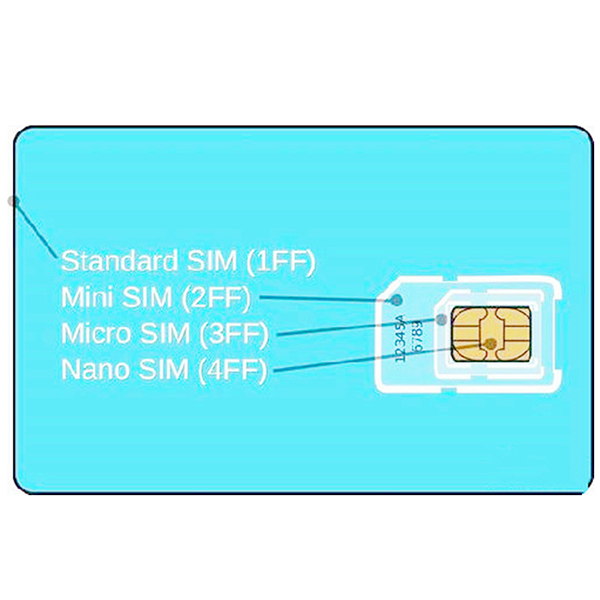

SIM card -

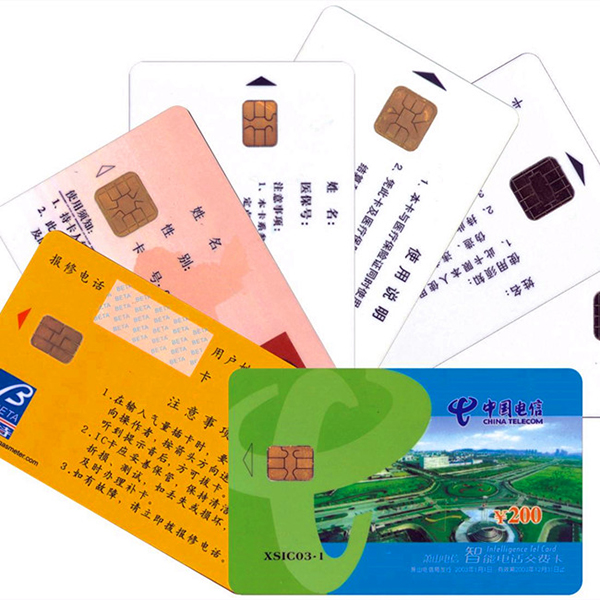

Telecom card
Specifications
| Power supply | AC 380V/50 HZ | Card size | ISO card (85.5x54mm) |
| Total power | 5.5KW | Control | PLC control + servo system |
| Air source | 6 kg/cm2 | Operators needed | 1 |
| Air consumption | Approx. 80L/min | Dimension | L2500*W650*H1600MM |
| Positioning accuracy | ±0.1mm | Card thickness | 0.76mm |
| Applicable card materials | PVC, ABS, PET, PVC/ABS composite materials, etc. | Productivity | 6500PCS/H |
- Productivity: 6500PCS/H
- Card thickness: 0.76mm
- Card size: ISO card (85.5x54mm)
- Applicable card materials: PVC, ABS, PET, PVC/ABS composite materials, etc.
- Dimension: L2500*W650*H1600MM
- Power supply: AC 380V/50 HZ
- Total power: 5.5KW
- Control: PLC control + servo system
- Air source: 6 kg/cm2
- Operators needed: 1
- Air consumption: Approx. 80L/min
- Positioning accuracy: ±0.1mm
Features
- Servo driven belt for cards transporting, providing high precision and adjustable speed;
- Servo motor guarantees stable work pressure and low noise level;
- Double card magazines for cards loading and collecting significantly improve work efficiency;
- 2FF/3FF/4FF SIM punching and scribing can be done synchronously;
Details
-

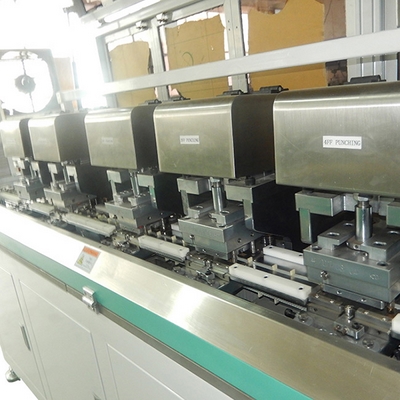

Punching unit -

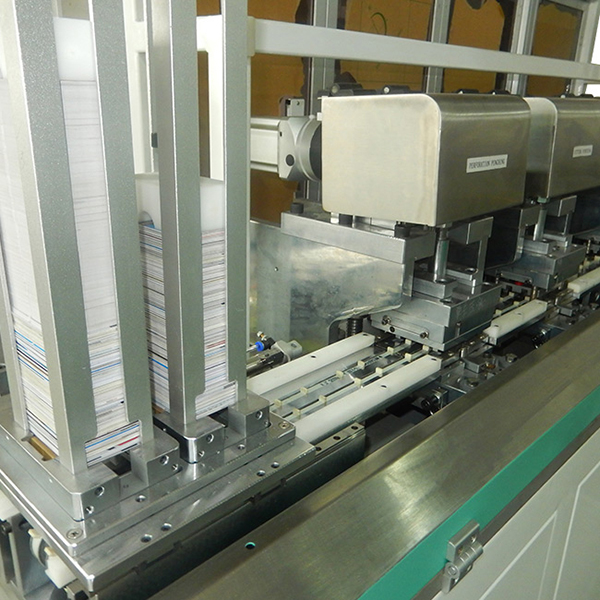

Feeding unit -

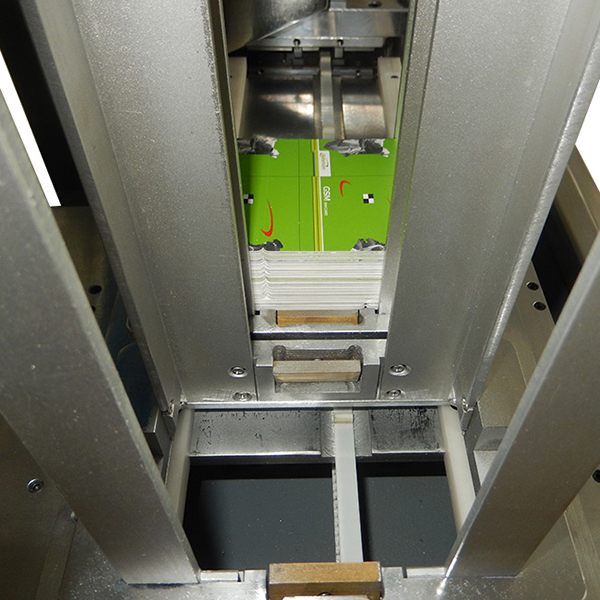

Card distributing unit -

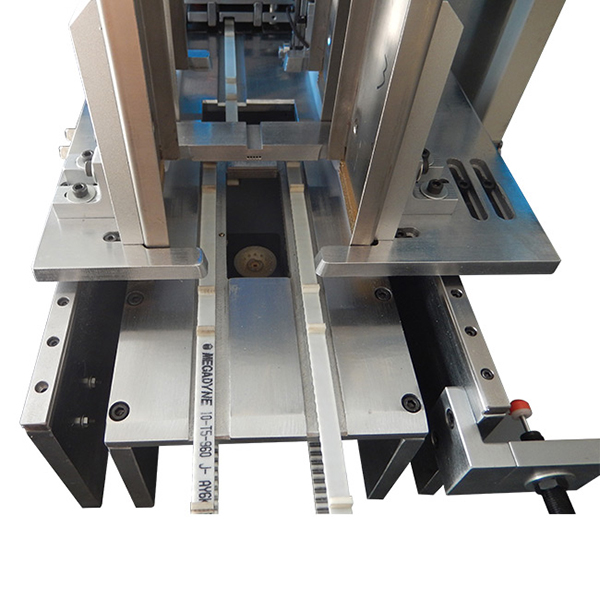

Card collection unit
