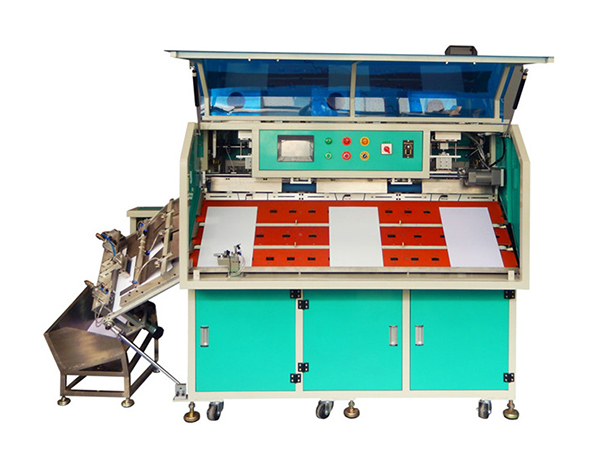

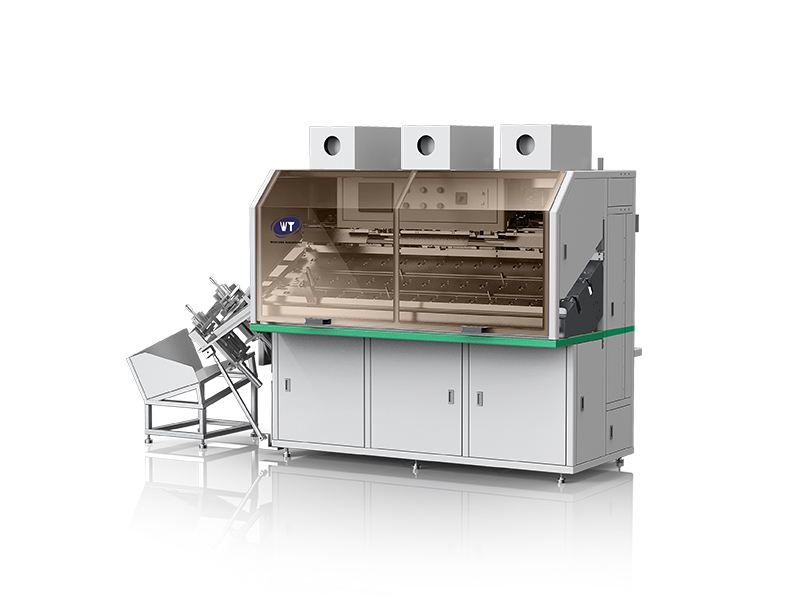

Automated Ultrasonic Welding System (for Card Production), WT-007DWJ

Automated Ultrasonic Welding System (for Card Production), WT-007DWJ

Automated ultrasonic welding system is PLC controlled, capable of providing accurate spot welding time and excellent welding result. This ultrasonic spot welder allows card sheets to be automatically loaded, distributed and arranged in an orderly manner, it is primarily applied in manufacturing various cards consisting of multilayer substrates.

Inquiry
Specifications
Power supply AC 380V/50 HZ Format 3X8/4X8/5X5/5X6 optional
Total power 2.5KW Control PLC control + servo system
Air source 6 kg/cm2 Operators needed 1
Air consumption Approx. 100L/min Dimension L2350*W1250*H1700MM
Positioning accuracy ±0.2mm Welding thickness 0.3mm~1.0mm
Weight Approx. 1000KG Quantity of welded spots 1/2
Applicable card materials Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc. Productivity 1200~1500 Sheet/H
  • Productivity: 1200~1500 Sheet/H
  • Applicable card materials: Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.
  • Format: 3X8/4X8/5X5/5X6 optional
  • Positioning accuracy:±0.2mm
  • Welding thickness: 0.3mm~1.0mm
  • Quantity of welded spots: 1/2
  • Operators needed: 1
  • Power supply: AC 380V/50 HZ
  • Total power: 2.5KW
  • Control: PLC control + servo system
  • Air source: 6 kg/cm2
  • Air consumption: Approx. 100L/min
  • Dimension: L2350*W1250*H1700MM
  • Weight: Approx. 1000KG
Features
  • Servo motor driven belt allows sheets to be precisely fed, transporting speed is adjustable;
  • Adopting ultrasonic welding process provides durable and excellent welding result;
  • Stable sheet feeding without scratching;

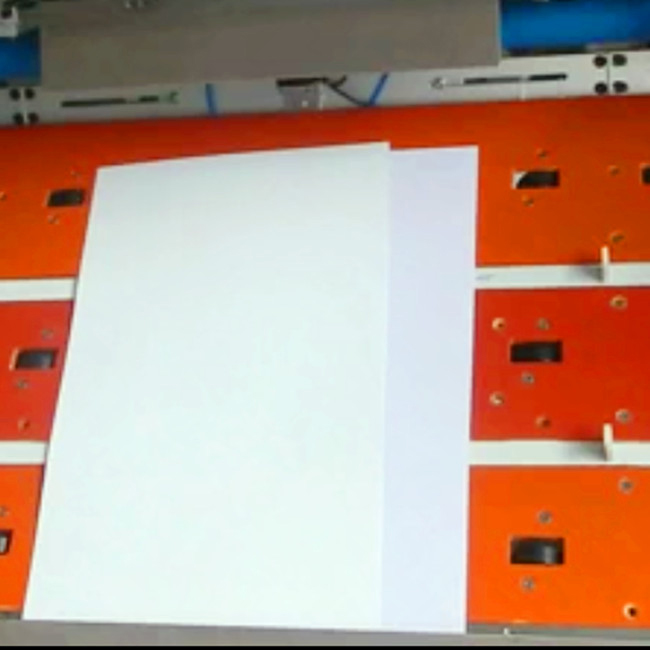

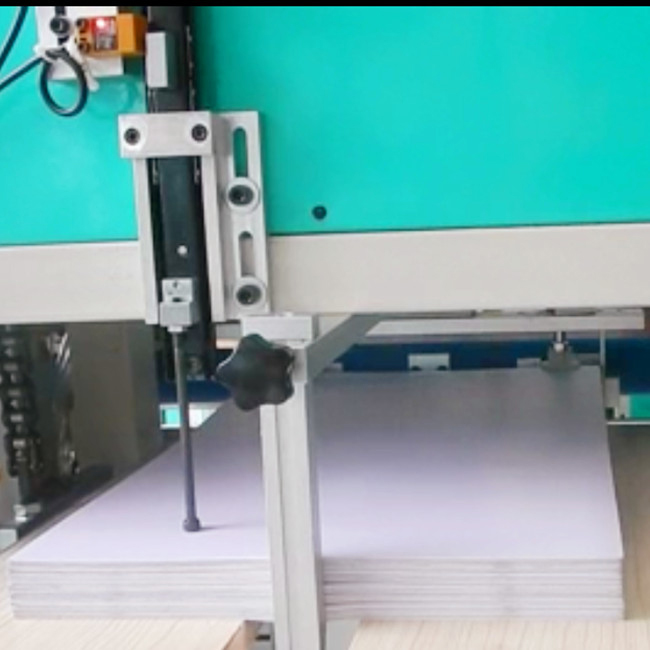

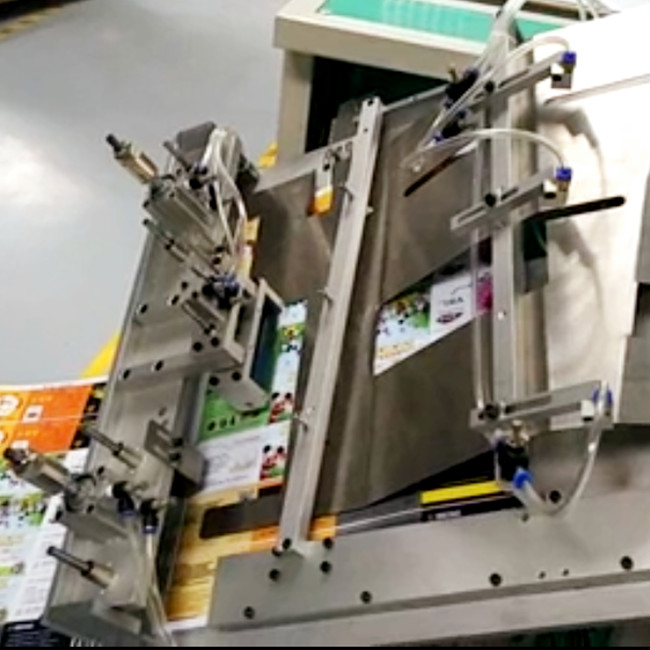

Details
