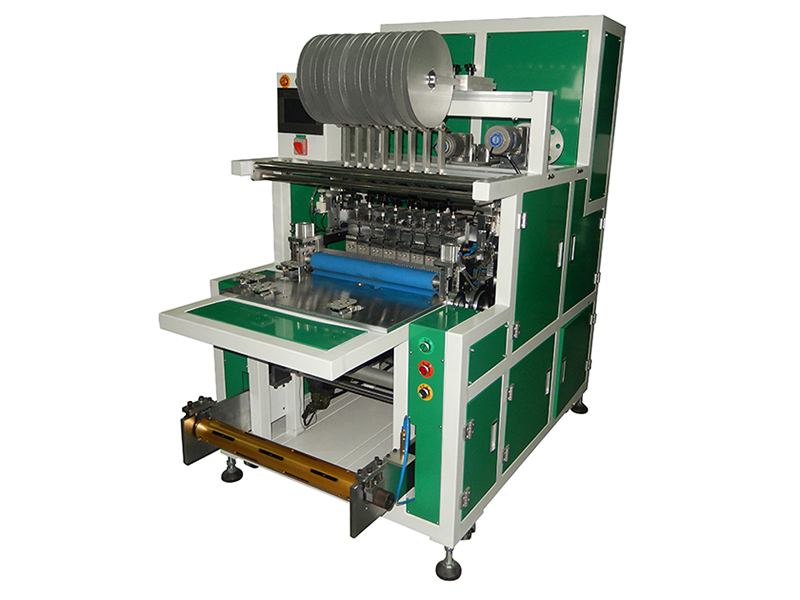

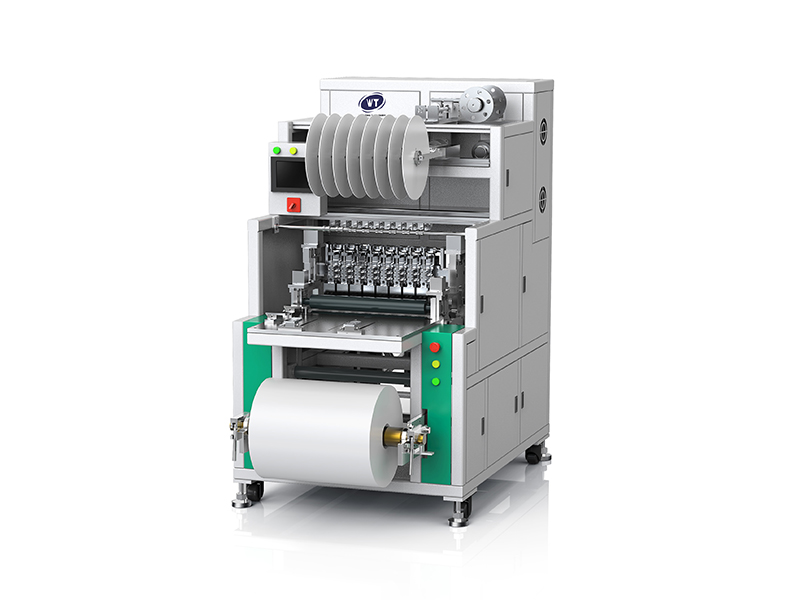

Magnetic Tape Laying Machine, WT-007BCT

Magnetic Tape Laying Machine, WT-007BCT

Our automatic magnetic tape laying machine is typically designed for laying magnetic strips onto film or card sheet materials. The pressure and heat are used in magnetic tape laying process, the temperature of laying rollers is independently controlled for an optimal laying result.

Inquiry
Specifications
Power supply AC 380V/50 HZ Format 3X8/4X8/5X5 optional
Total power 2.5KW Control PLC control + servo system
Air source 6 kg/cm2 Operators needed 1
Air consumption Approx. 80L/min Dimension L2250*W1000*H1700MM
Laying accuracy ±0.15mm Product thickness 0.2mm~0.8mm
Temperature control accuracy ±2℃ Temperature control range 0~400℃
Magnetic tape width 6.35mm/8.4mm/12.7mm Quantity of magnetic tapes 5~8
Applicable materials Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc. Productivity 900 Sheet/H
  • Productivity: 900 Sheet/H
  • Format: 3X8/4X8/5X5 optional
  • Product thickness: 0.2mm~0.8mm
  • Magnetic tape width: 6.35mm/8.4mm/12.7mm
  • Quantity of magnetic tapes: 5~8
  • Laying accuracy: ±0.15mm
  • Applicable materials: Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.
  • Operators needed: 1
  • Dimension: L2250*W1000*H1700MM
  • Power supply: AC 380V/50 HZ
  • Control: PLC control + servo system
  • Air source: 6 kg/cm2
  • Air consumption: Approx. 80L/min
  • Temperature control accuracy: ±2℃
  • Temperature control range: 0~400℃
Features
  • Servo motor driven roller conveys sheets, offering precise sheet feeding and adjustable feeding speed;
  • Independent temperature control and PLC control;

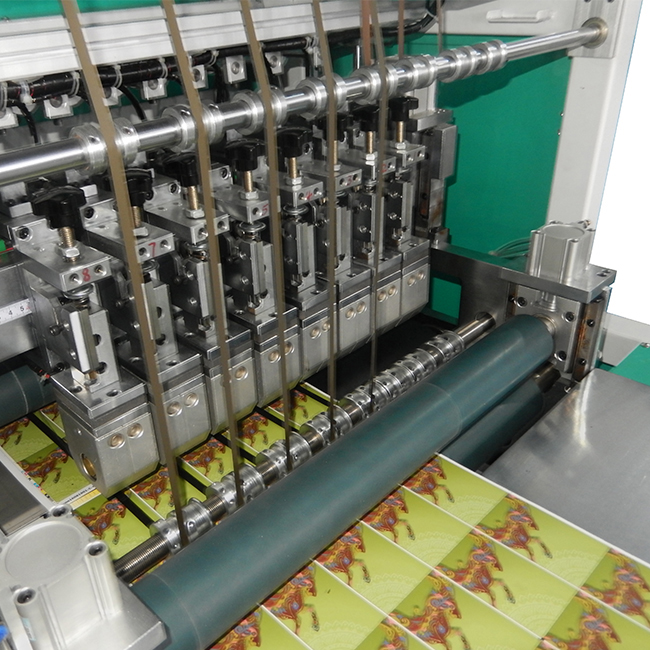

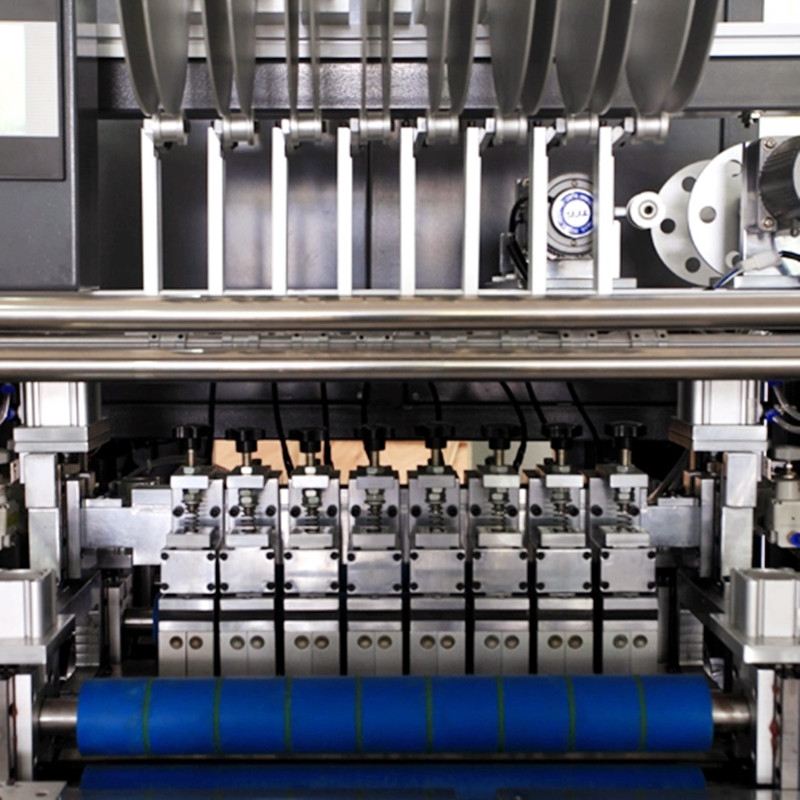

  • Multi laying rollers with adjustable pressure ensure optimal laying result;
  • Pressure and temperature of each laying roller are individually controlled;
Details
