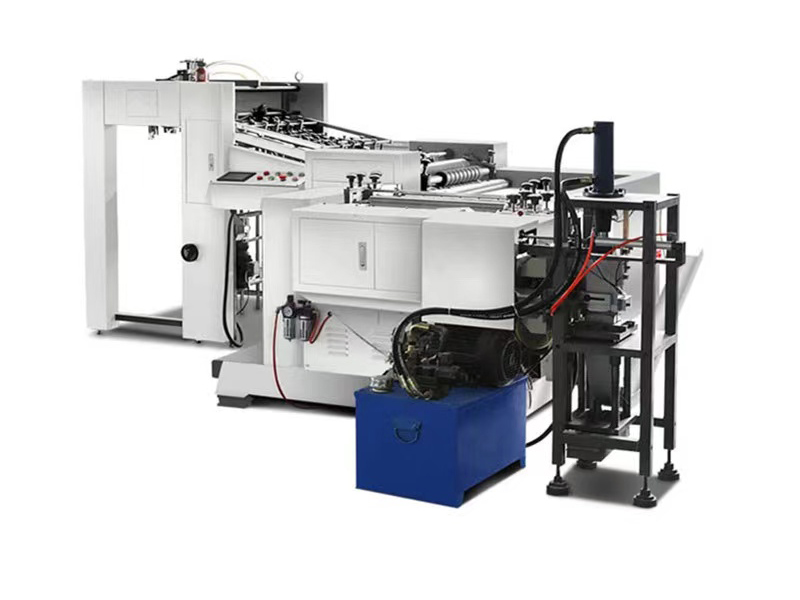

Playing Card Production System (Slitting, Die-cutting and Collating), WT-007CSCM
WT-007CSCM automated card production system is typically designed for in-line slitting, die-cutting and collating of various cards, widely applied in manufacturing playing cards, sight words flashcards, cartoon cards, gaming cards, etc. The significant feature of this playing card production system is that all individual playing cards are sorted and arranged in the correct order.
Samples
-
Children's flashcards -
Cards -
Playing cards -
Playing cards
Specifications
| Power supply | AC380V/50HZ | Max. sheet size | 1040*720mm |
| Total power | 7.0KW | Min. sheet size | 450*550mm |
| Air source | 6 kg/cm2 | Max. card size | 90*120mm |
| Air consumption | 100L/min | Min. card size | 50*65mm |
| Slitting accuracy | ±0.15mm | Operators needed | 2 |
| Weight | 3000kg | Dimension | 3550*4350*1550 mm |
| Sheet thickness | 200~450g/m2 | Productivity | 3000 Sheet/H |
- Productivity: 3000 Sheet/H
- Min. sheet size: 450*550mm
- Max. Sheet size: 1040*720mm
- Max. Card size: 90*120mm
- Min. Card size: 50*65mm
- Sheet thickness: 200~450g/m2
- Slitting accuracy: ±0.15mm
- Air consumption: 100L/min
- Power supply: AC380V/50HZ
- Dimension: 3550*4350*1550 mm
- Weight: 3000kg
- Air source: 6 kg/cm2
- Total power: 7.0KW
- Operators needed: 2
Features

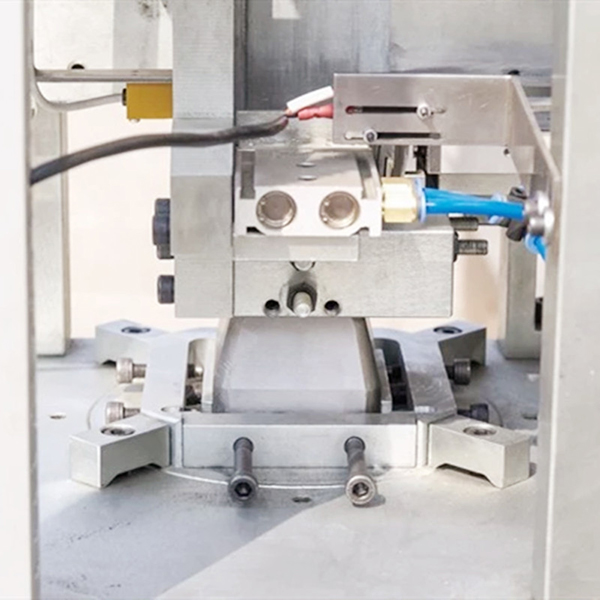

- Automatic accomplishing of sheet feeding, slitting, collecting, perforating, round cornering, etc.

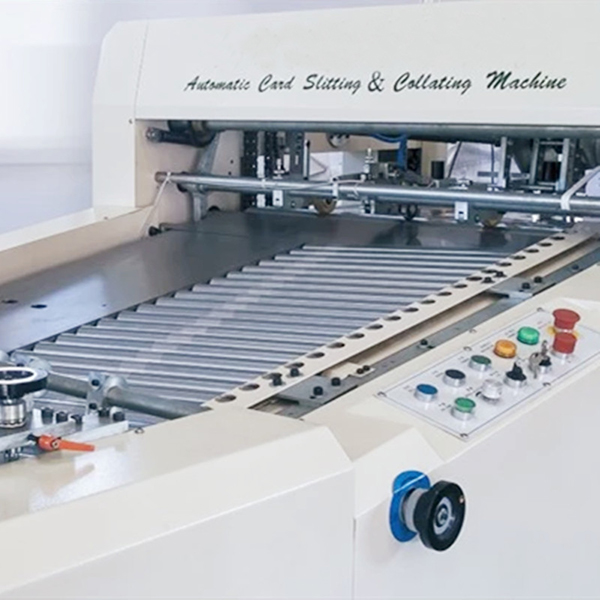

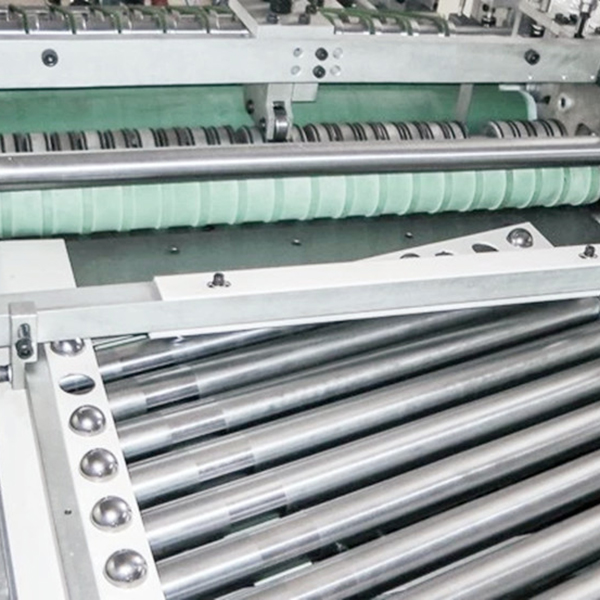

- Sheets are positioned and aligned by front lays and side lays, and then transferred into slitting station by rollers;

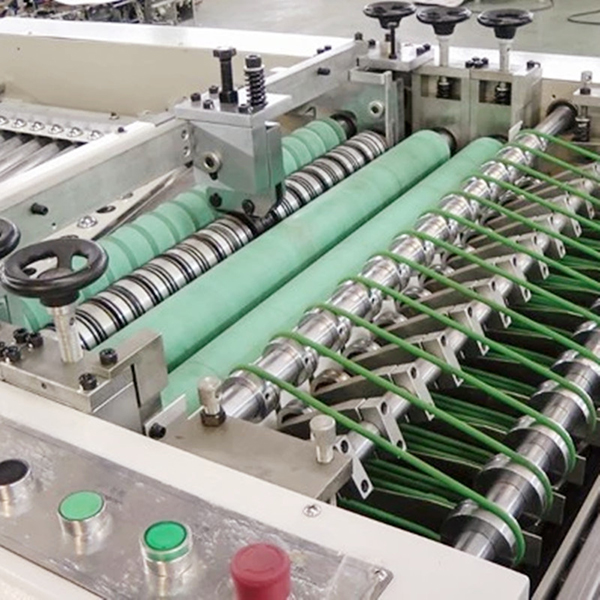

- Slitting knives are easy to changeover and adjust;

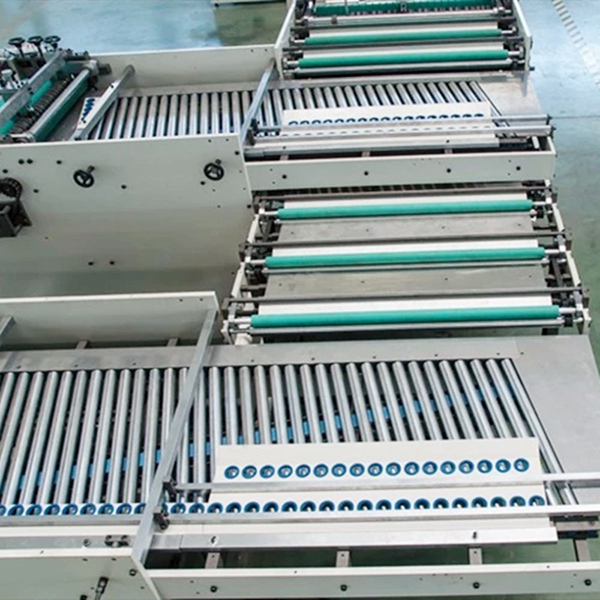

- Cards collection system is featured by high stability, without shortage of cards;
- In-line production of a variety of cards including playing cards, cartoon cards, trading cards, postal cards with diverse sizes;

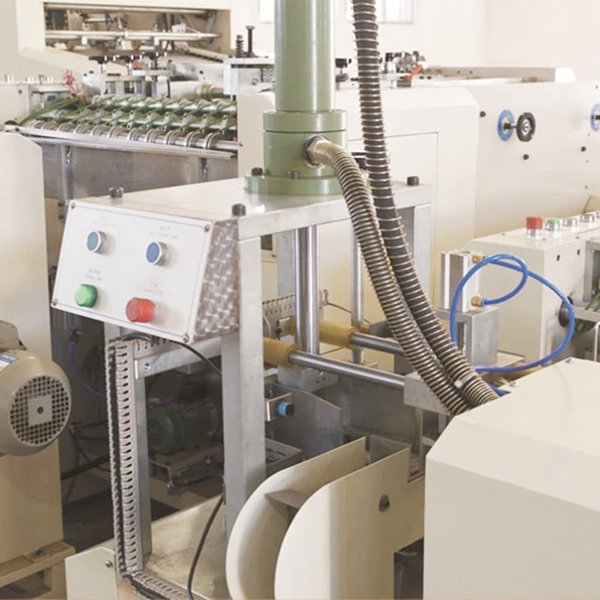

Details
Other Products
-
- Automated Packaging Machine, Heat Sealing (10000pcs/Hour), WT-007BZJ This automated packaging machine is a heat sealing equipment used for closing card packaging bags and pouches, suitable for a wide range of cards ...
-
- Automated Packaging Machine, Ultrasonic Sealing (30000pcs/Hour), WT-008BZJWT-008BZJ automated card packaging machine is designed with ultrasonic sealing which can offer increased seal strength and improved aesthetics.
-
- SIM Card Punching Machine, WT-007SCPM WT-007SCPM SIM card punching machine is designed for punching and scribing a break-out line for Mini SIM (2FF), Micro SIM (3FF) Nano SIM (4FF) cards based on the standard SIM card (1FF).
-

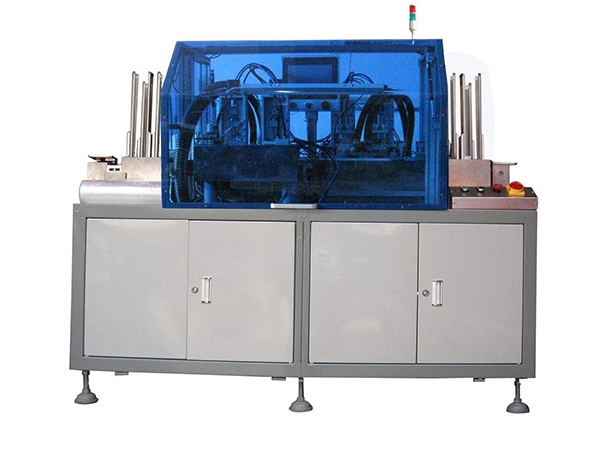

- SIM Card Milling Machine, WT-007SCMMThis SIM card milling machine is a smart card processing system that creates cavity where the contact chip will be inserted, comprising of card milling, cavity cleaning, cavity depth measurement and optical character recognition (OCR).
