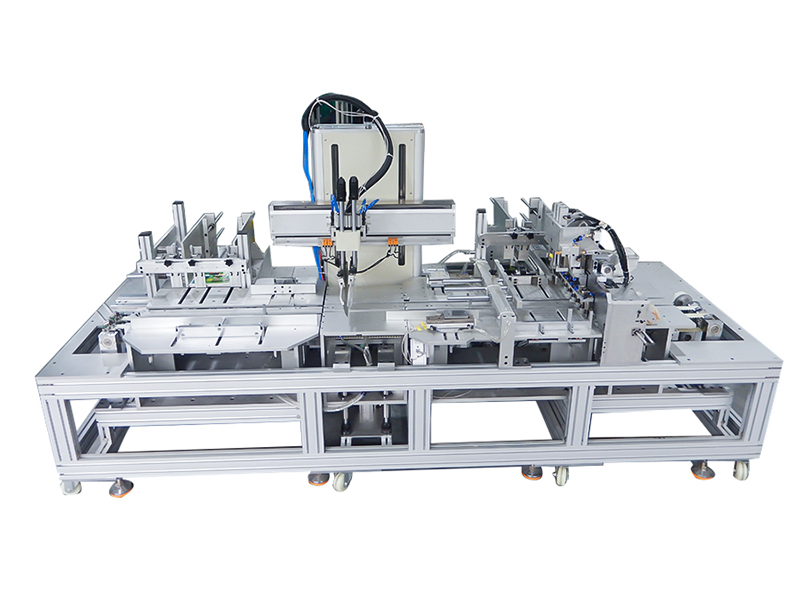

Board Book Mounting and Gluing Machine, WT-007DBJ
Board book mounting and gluing machine is an automatic book binding machine for children’s board books, it can accomplish book mounting and gluing in one step. This board book machine allows glue to be applied on full area or in section, giving an optimal binding result.
-

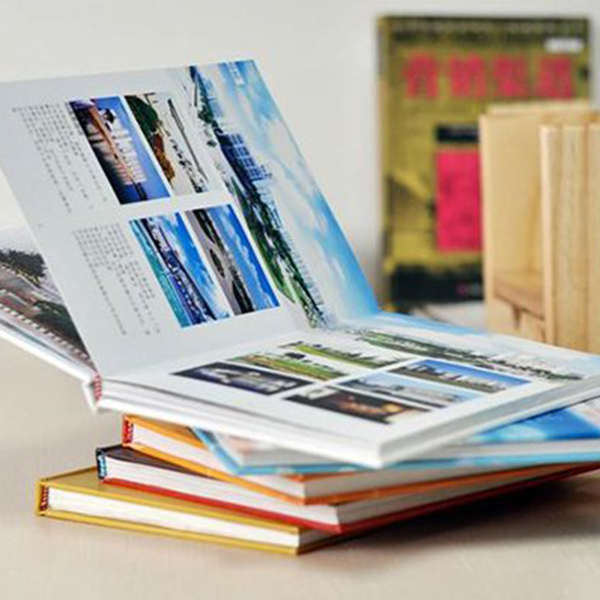

Children’s books -

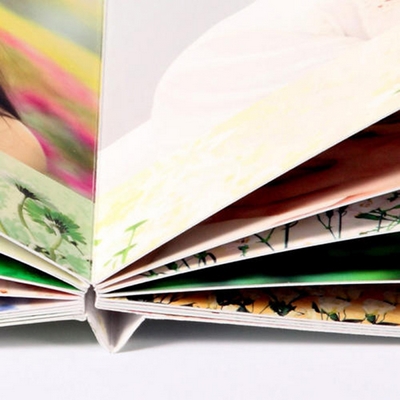

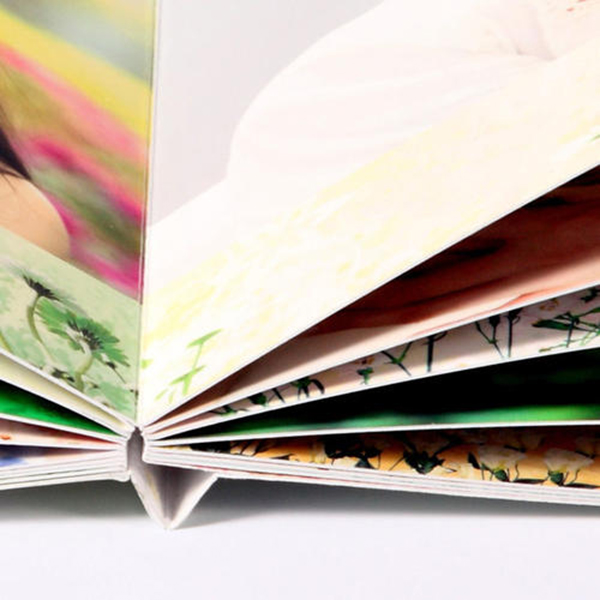

Lift-the-flap book -

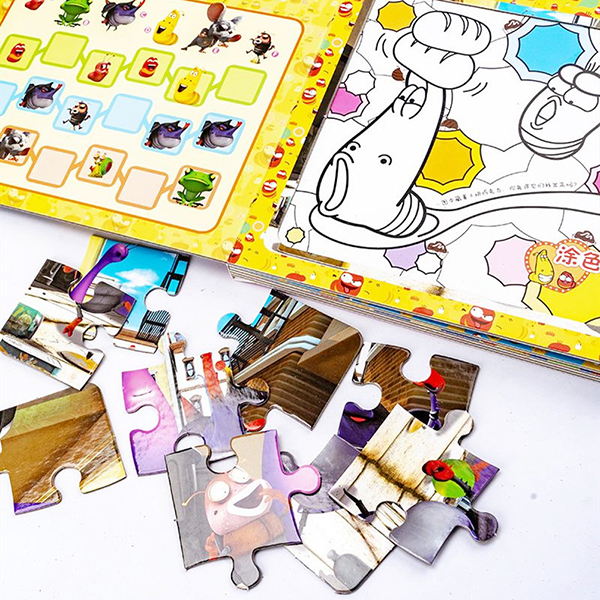

Jigsaw puzzle board book
| Power supply | AC 380V/50 HZ | Min. infeed sheet size | 100*100mm |
| Total power | 10KW | Max. infeed sheet size | 300*300mm |
| Air source | 6 kg/cm2 | Single sheet thickness | 0.25mm-4mm |
| Air consumption | Approx.150L/min | Glue type | Water-based adhesives |
| Dimension | L15500*W1650*H1700MM | Gluing | Full area/sectional area |
| Weight | Approx.3500KG | Mounting | General/special shaped |
| Operators needed | 5 | Productivity | 3600sheets/H |
| Configurable | 1/6/12 workstations |
- Productivity: 3600sheets/H
- Single sheet thickness: 0.25mm~4mm
- Max. Infeed sheet size: 300*300mm
- Min. infeed sheet size: 100*100mm
- Mounting: General/special shaped
- Glue type: Water-based adhesives
- Gluing: Full area/sectional area
- Power supply: AC 380V/50 HZ
- Total power: 10KW
- Air source: 6 kg/cm2
- Air consumption: Approx.150L/min
- Dimension: L15500*W1650*H1700MM
- Weight: Approx.3500KG
- Operators needed: 5
- Configurable: 1/6/12 workstations
-
- Sheet feeding unit
Board pages are stacked and placed in the magazine, stable sheet feeding is guaranteed through corresponding size adjustment;
- Sheet feeding unit
-
- Gluing unit
Standard glue application structure, the position is adjustable according to individual page size;
- Gluing unit
-
- Belt conveying unit
Servo motor driven belt transfers individual sheets, providing precise positioning and flexible speed control;
- Belt conveying unit
-
- Book page pressing unit
Every single page is tightly pressed after gluing, ensure a great book binding result;
- Book page pressing unit
-
- Playing Card Production System (Slitting, Die-cutting and Collating), WT-007CSCM WT-007CSCM automated card production system is typically designed for in-line slitting, die-cutting and ...
-

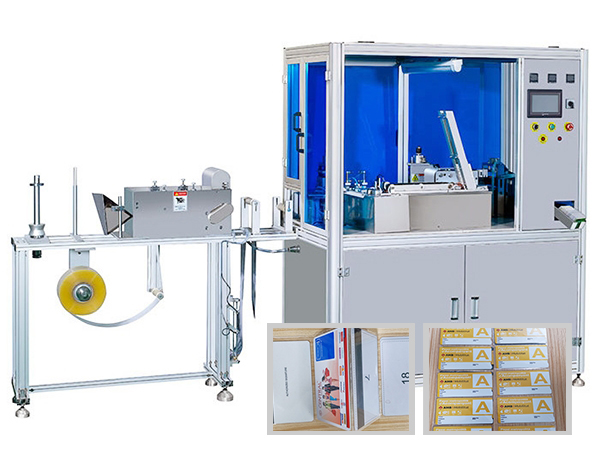

- Automated Packaging Machine, Heat Sealing (10000pcs/Hour), WT-007BZJ This automated packaging machine is a heat sealing equipment used for closing card packaging bags and pouches, suitable for a wide range of cards ...
-

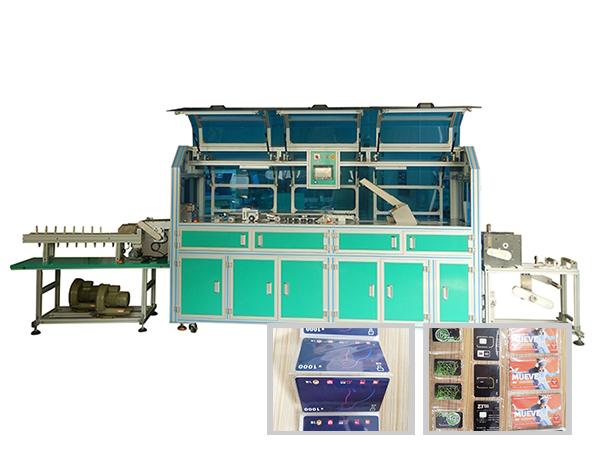

- Automated Packaging Machine, Ultrasonic Sealing (30000pcs/Hour), WT-008BZJWT-008BZJ automated card packaging machine is designed with ultrasonic sealing which can offer increased seal strength and improved aesthetics.
-

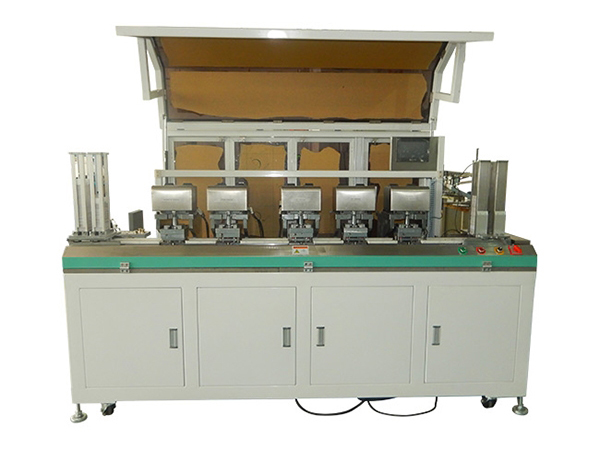

- SIM Card Punching Machine, WT-007SCPM WT-007SCPM SIM card punching machine is designed for punching and scribing a break-out line for Mini SIM (2FF), Micro SIM (3FF) Nano SIM (4FF) cards based on the standard SIM card (1FF).
