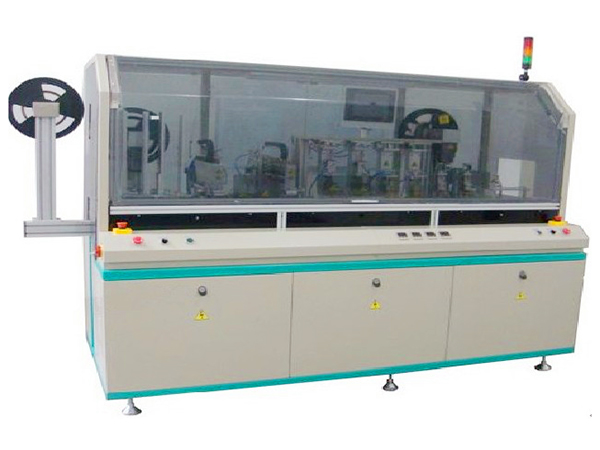

Automatic Smart Card Milling and Implanting Machine, WT-007SCMEM
This automatic smart card machine is suitable for milling of the cavity and implanting of the chip module for standard chip cards. The steps including cavity milling, chip module punching and implanting are all carried out in a completely automatic process in one line.
Specifications
| Power supply | AC380V/50HZ | Servo accuracy | X, Y=0. 0125mm |
| Power | 7.0KW | Mechanical accuracy | 0.01mm |
| Air source | 6 kg/cm2 | Control | PLC program ＆ servo system |
| Air consumption | 150L/min | Applicable card materials | Various types of chips, ISO standard card substrate |
| Weight | 1500kg | Operators needed | 1 |
| Dimension | 2800x850x1750(mm) | Productivity | 5500~8500PCS/H |
| Pass rate | 99.8% |
- Productivity: 5500~8500PCS/H
- Applicable card materials: Various types of chips, ISO standard card substrate
- Mechanical accuracy: 0.01mm
- Pass rate: 99.8%
- Servo accuracy: X, Y=0. 0125mm
- Control: PLC program ＆ servo system
- Operators needed: 1
- Power supply: AC380V/50HZ
- Power: 7.0KW
- Air source: 6 kg/cm2
- Air consumption: 150L/min
- Weight: 1500kg
- Dimension: 2800x850x1750 (mm)
Features
- Integrating cavity milling, dust removal, cavity depth measurement, spot welding, module punching, implanting, bonding and testing in one machine;
- Achieving accurate milling depth, regardless of card thickness and size;
- Preset standard milling program consists of 4 modules, parameters are programmable according to actual operation needs;
- Two milling stations (X, Y and Z axes) can work independently or simultaneously to meet specific milling needs;
- Z axis is driven by high precision servo motor and moves along the guide rail to ensure accurate milling depth;
- Cavity detection function ensures that chip module will not be implanted when there is no cavity;
- Photoelectric sensor automatically identifies chip modules;
- Special design of adhesive dispensing ensures precision dosing of adhesive on the milled cavity;
- ATR chip module testing system guarantees the pass rate of chip implanting;
- Unqualified chip modules are automatically rejected and collected;
