Automated Hole-punching and Creasing Machine, WT-007PCM

Automated Hole-punching and Creasing Machine, WT-007PCM

Our automated hole-punching and creasing machine is typically used to produce hang tags, labels, RFID products, it is applicable to process a variety of materials such as paper card, PVC, ABS, PET, PVC/ABS composite materials with a thickness range of 0.2mm-2.0mm. Servo motor drives timing belt to allow sheets to be precisely fed. Double card magazines for card feeding greatly improve working efficiency.

Inquiry
Finished Products
  • Finished Products
  • Finished Products
Specifications
Power supply AC 380V/50 HZ Card size Customized
Total power 2.0KW Control PLC control + servo system
Air source 6 kg/cm2 Operators needed 1
Air consumption Approx. 80L/min Dimension L1650*W680*H1600MM
Positioning accuracy ±0.1mm Card thickness 0.2mm~2.0mm
Weight Approx. 400KG Mold 1 or 2 optional
Applicable card materials Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc. Productivity 10000PCS/H
  • Productivity: 10000PCS/H
  • Card size: Customized
  • Positioning accuracy: ±0.1mm
  • Card thickness: 0.2mm~2.0mm
  • Dimension: L1650*W680*H1600MM
  • Weight: Approx. 400KG
  • Power supply: AC 380V/50 HZ
  • Total power: 2.0KW
  • Control: PLC control + servo system
  • Air source: 6 kg/cm2
  • Operators needed: 1
  • Air consumption: Approx. 80L/min
  • Mold: 1 or 2 optional
  • Applicable card materials: Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.
Features

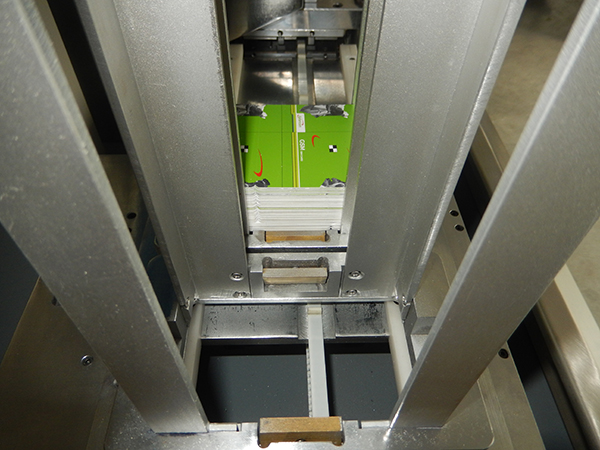

    1. Card magazines
    2. Card magazines

      Double card magazines are changeable to increase production efficiency while make the card stacking process easier;

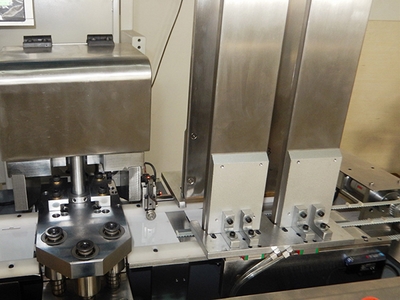

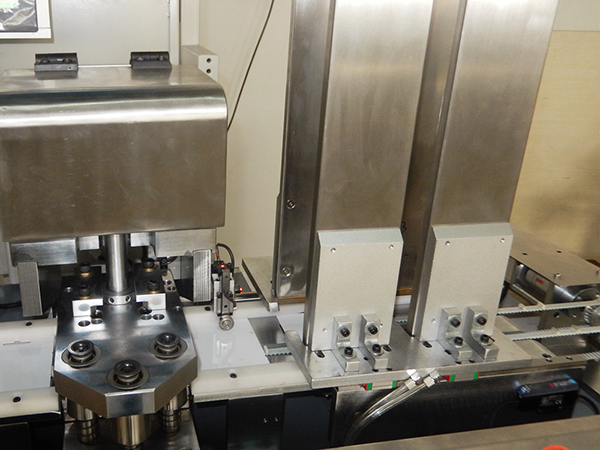

    1. Servo motor & timing belt assembly
    2. Servo motor & timing belt assembly

      Timing belt is driven by servo motor to transfer cards to the designated position, providing fast positioning, high precision and adjustable speed;

    1. Inspection unit
    2. Inspection unit

      Sensor determines the quantity of sheets to feed each time by adjusting the thickness of single sheet, and the alarm will be actuated in the event of abnormal operation;

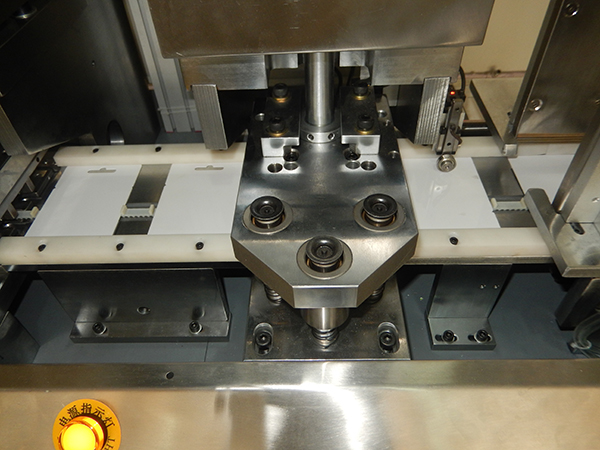

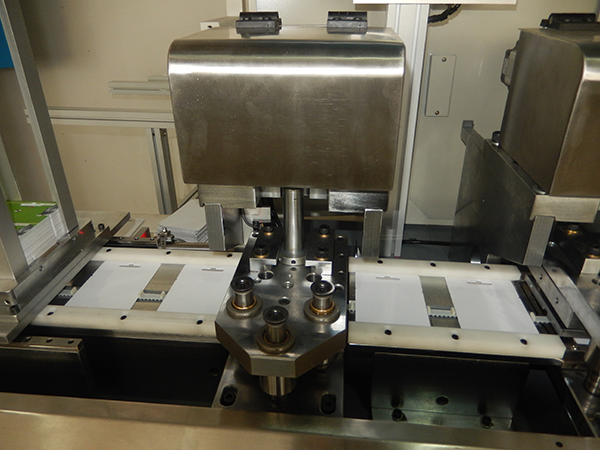

    1. Servo punching & creasing unit
    2. Servo punching & creasing unit

      High torque servo motor is adopted to guarantee stable work pressure and low noise level; The unit can implement punching and creasing simultaneously, or independently perform one of these two processes;

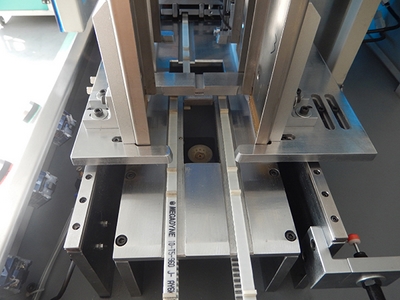

    1. Card collection unit
    2. Card collection unit

      Double card magazines work alternately, enabling card collection to be easier and improving production efficiency;
