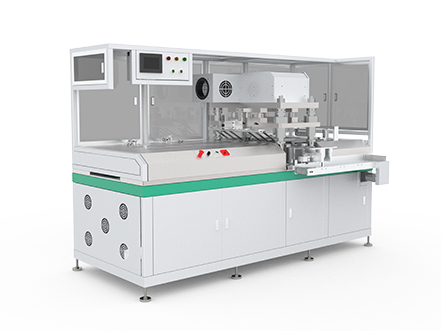

Card Punching Machine (Paper/Plastic Card), WT-009CKJ

Card Punching Machine (Paper/Plastic Card), WT-009CKJ

WT-009CKJ card punching machine is constructed to accurately cut cards of various materials including paper, PVC, ABS, PET, etc., suitable for manufacturing cards with sizes ranging from 54*54mm to 210*210mm. Sheets are accurately positioned by X and Y axes, making multiple processes of card forming, corner rounding, hole punching and creasing to be accomplished in one step, and punched cards are automatically collected in an orderly manner. This card punching machine is widely suited to make flashcards, cognitive cards, kid's books, calendars, hang tags, header cards, special shaped cards, etc.

Inquiry

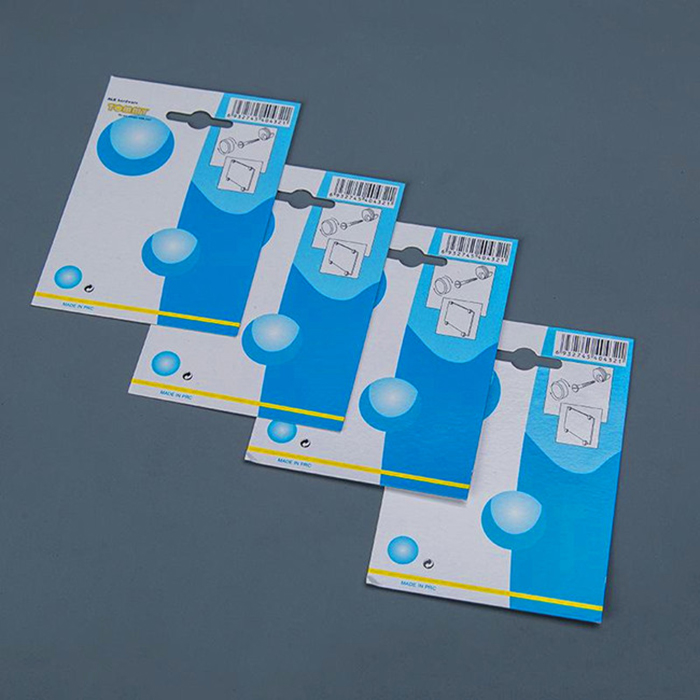

Finished Products
Specifications
Power supply AC 380V/50 HZ Sheet format Max. (L*W) 1100*630MM
Min. (L*W) 297*210MM
Total power 6.5KW Control PLC control + servo/hydraulic system
Air source 6 kg/cm2 Operators needed 1
Air consumption Approx. 60L/min Dimension L2750*W1500*H1700MM
Punching pressure 2T-6T Drive Servo/hydraulic system
Weight Approx. 1000KG Punched card size Max. 210*210MM
Min. 54*54MM
Punching accuracy ±0.10mm Productivity 15000~30000PCS/H
Applicable card materials Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.
  • Productivity: 15000~30000PCS/H
  • Punched card size: Max. 210*210MM/ Min. 54*54M
  • Punching accuracy: ±0.10mm
  • Sheet format: Max. (L*W) 1100*630MM/ Min. (L*W) 297*210MM
  • Punching pressure: 2T-6T
  • Dimension: L2750*W1500*H1700MM
  • Weight: Approx. 1000KG
  • Air source: 6 kg/cm2
  • Drive: Servo/hydraulic system
  • Power supply: AC 380V/50 HZ
  • Total power: 6.5KW
  • Control: PLC control + servo/hydraulic system
  • Operators needed: 1
  • Air consumption: Approx. 60L/min
  • Applicable card materials: Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.
Features

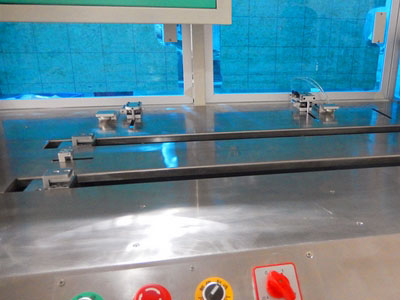

    1. Sheet feeding unit
    2. Sheet feeding unit

      Two feeding modules supply sheets alternately, position parameter is adjustable, the accuracy can reach ±0.10mm;

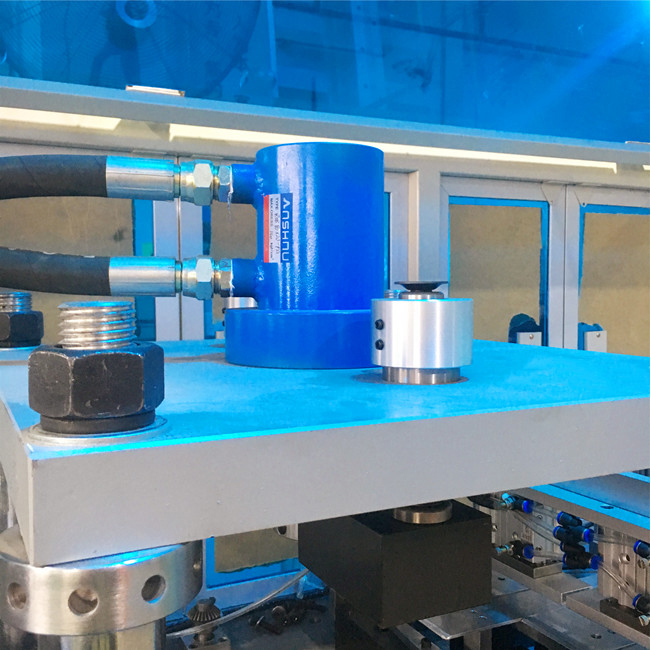

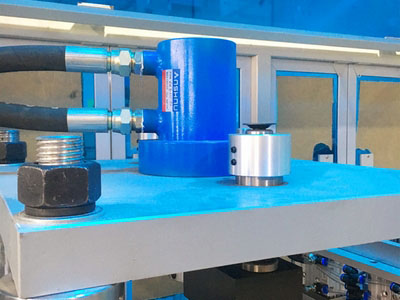

    1. Punching unit
    2. Punching unit

      Punching pressure and speed can be easily adjusted, low noise and stable operation;

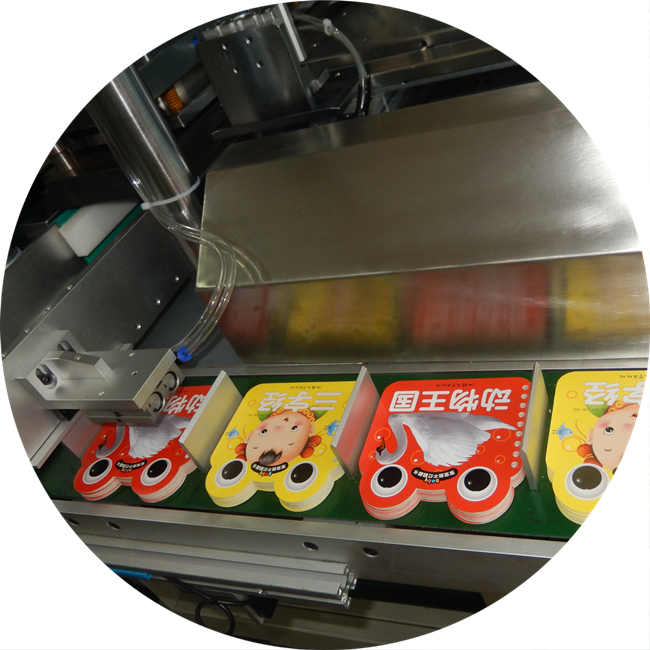

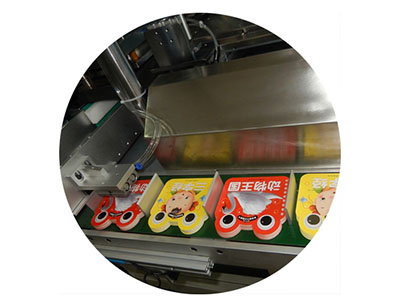

    1. Punched card collection unit
    2. Punched card collection unit

      After processes of card forming, corner rounding, hole punching and creasing are accomplished in one step, the collection unit automatically stacks and collects punched cards in an orderly manner, eliminating the need for secondary sorting;
