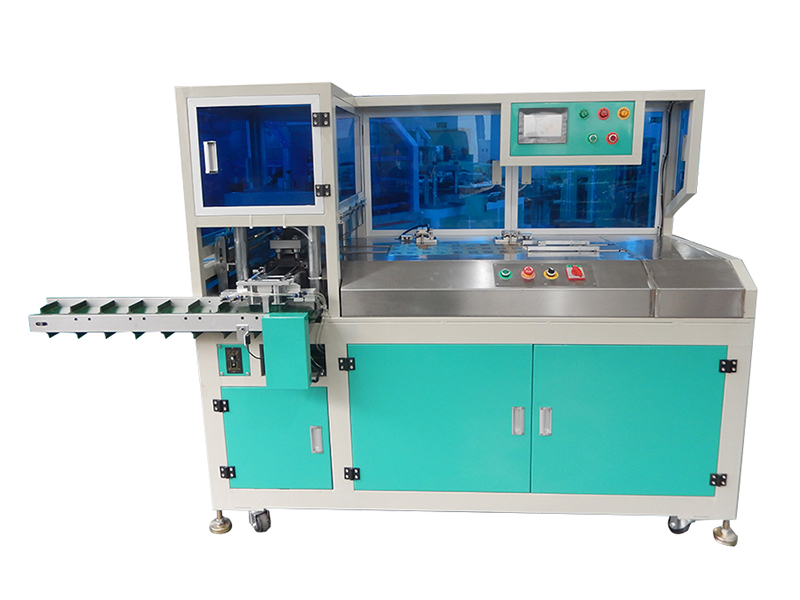

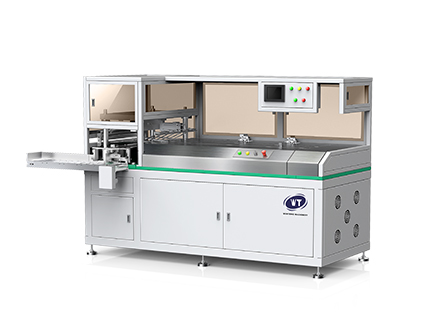

Card Punching Machine (Paper/Plastic Card), WT-007CKJ

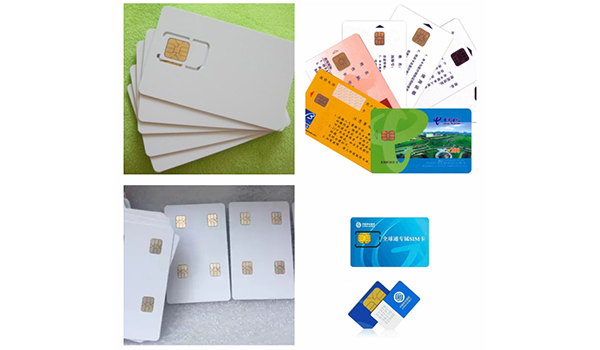

The WT-007CKJ card punching machine is designed to punch cards of various materials including paper, PVC, ABS, PET, etc. It is suitable for manufacturing card sizes ranging from 54*54mm to 210*210mm. Sheets are aligned and positioned bi-directionally by X and Y axes, enabling the card shapes and round corners to be punched and formed in one step. This card punching machine can automatically accomplish punched card collection and scrap removal.
| Power supply | AC 380V/50 HZ | Sheet format | Max. 1100*630MM Min. 297*210MM |
| Total power | 6.5KW | Control | PLC control + servo/hydraulic system |
| Air source | 6 kg/cm2 | Operators needed | 1 |
| Air consumption | Approx. 30L/min | Dimension | L2400*W1500*H1700MM |
| Punching pressure | 2T-6T | Drive | Servo/hydraulic system |
| Weight | Approx. 1000KG | Punched card size | Max. 210*210MM Min. 54*54MM |
| Punching accuracy | ±0.10mm | Productivity | 15000~30000PCS/H |
| Applicable card materials | Paper card, PVC, ABS, PET, etc. |
- Power supply: AC 380V/50 HZ
- Productivity: 15000~30000PCS/H
- Sheet format: Max. (L*W) 1100*630MM; Min. (L*W) 297*210MM
- Punched card size: Max. 210*210MM; Min. 54*54MM
- Punching accuracy: ±0.10mm
- Dimension: L2750*W1500*H1700MM
- Weight: Approx. 1000KG
- Applicable card materials: Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.
- Total power: 6.5KW
- Control: PLC control + servo/hydraulic system
- Air source: 6 kg/cm 2
- Operators needed: 1
- Air consumption: Approx. 60L/min
- Punching pressure: 2T-6T
- Drive: Servo/hydraulic system
-

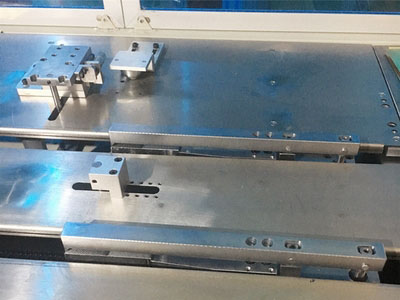

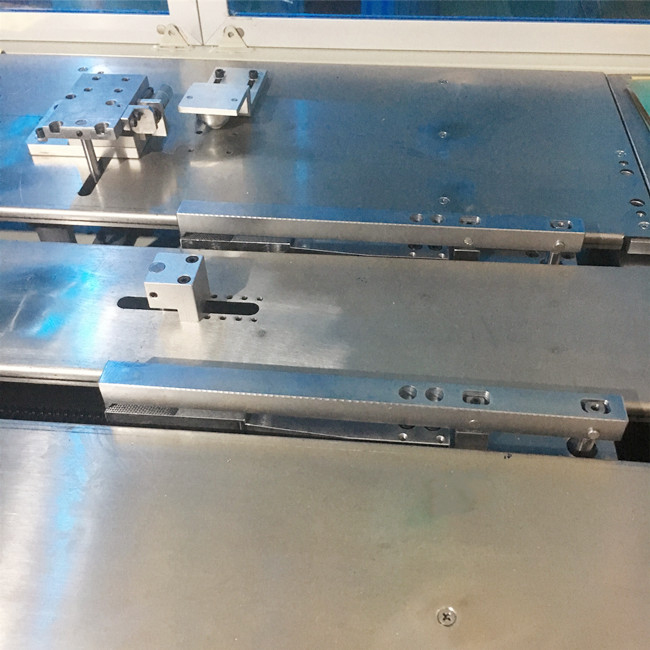

- Sheet feeding unit
OMRON sensor works with feeding module for high accuracy of sheet position, position parameter is adjustable, the accuracy can reach ±0.10mm;
-

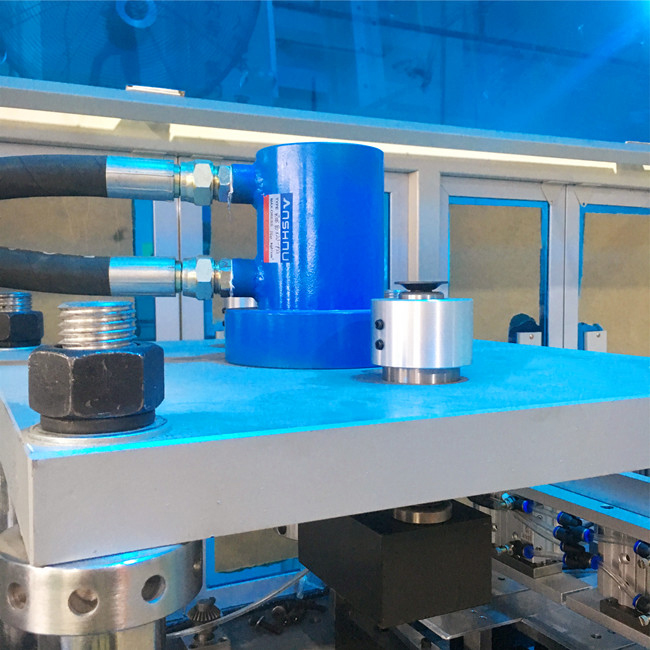

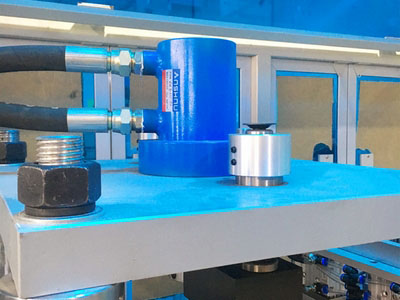

- Punching unit
Punching pressure and speed can be easily adjusted to accommodate cards of diverse materials and thicknesses, quick tool changing can be achieved when cards are varying;
-

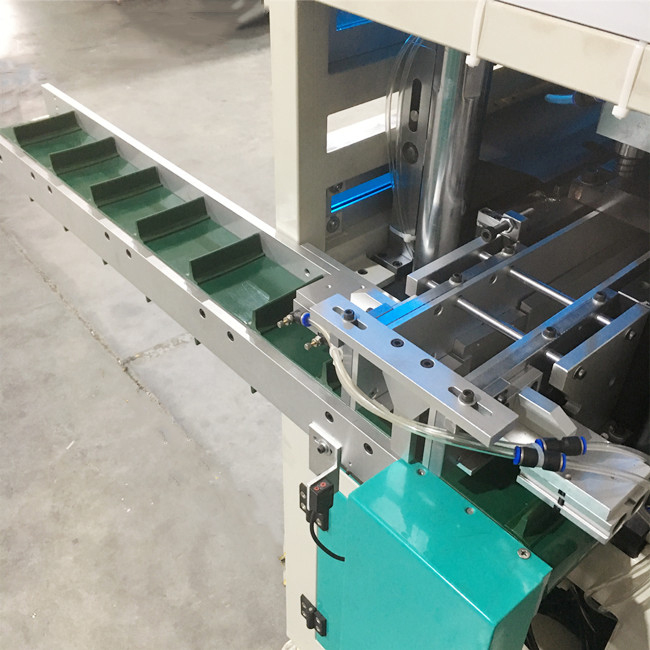

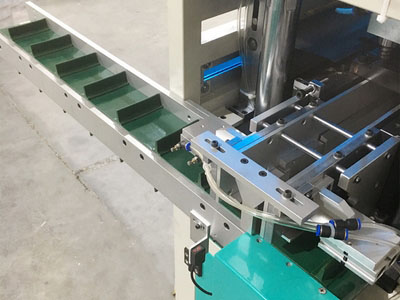

- Punched card collection unit
Specially designed card collection unit automatically stacks and collects cards in an orderly manner, eliminating the need for secondary sorting;
-

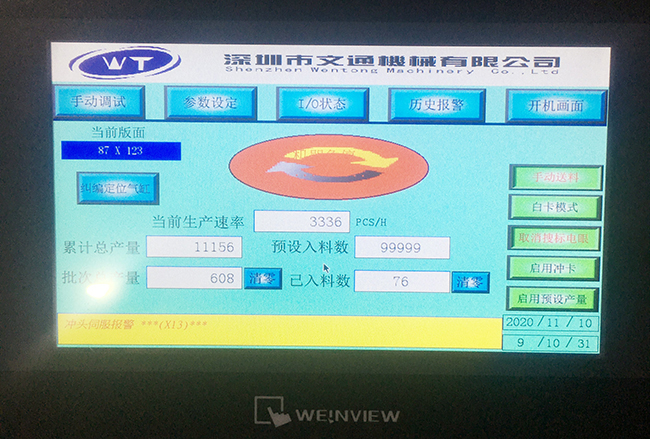

- PLC & HMI
PLC control system automatically monitors machine running status, the machine will immediately stop and actuate alarm in the event of abnormal operation;
-

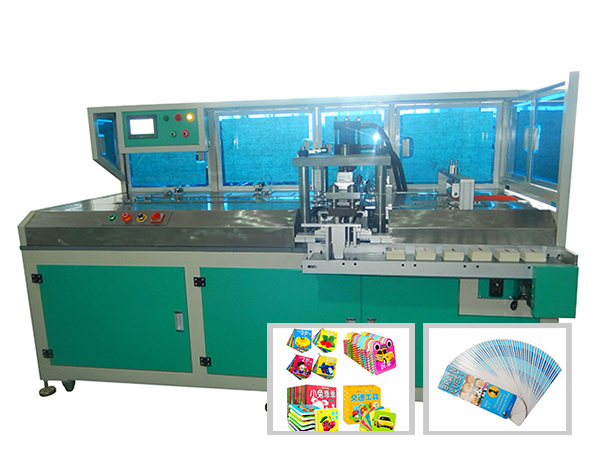

- Card Punching Machine (Paper/Plastic Card), WT-009CKJWT-009CKJ card punching machine is constructed to accurately cut cards of various materials including paper, PVC, ABS, PET, etc...
-

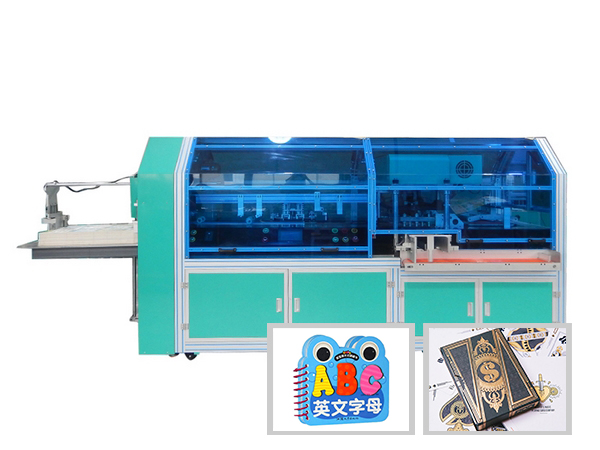

- Automatic Card Punching Machine (Paper/Plastic Card), WT-010ZDCKJ This automatic card punching machine features an automatic sheet feeder coupled with KEYENCE sensor for reliable positioning.
-

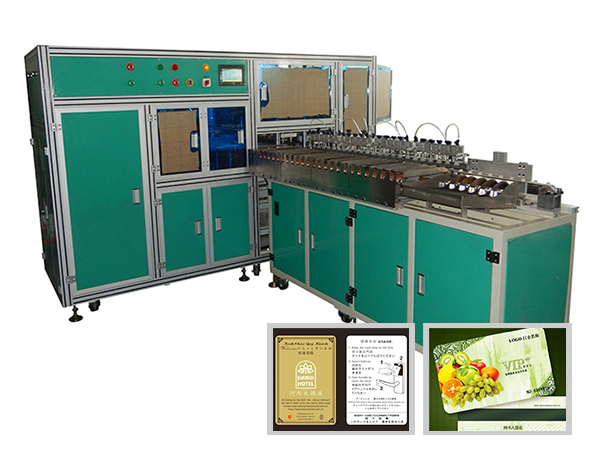

- Automatic Card Punching and Sorting Machine (Paper/Plastic Card), WT-008CQFJ This automatic card punching and sorting machine is particularly suitable for manufacturing name cards ...
-

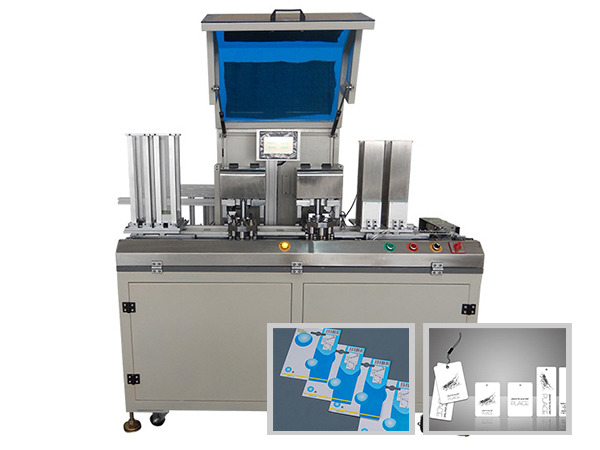

- Automated Hole-punching and Creasing Machine, WT-007PCMOur automated hole-punching and creasing machine is typically used to produce hang tags, labels, RFID products, it is applicable...
