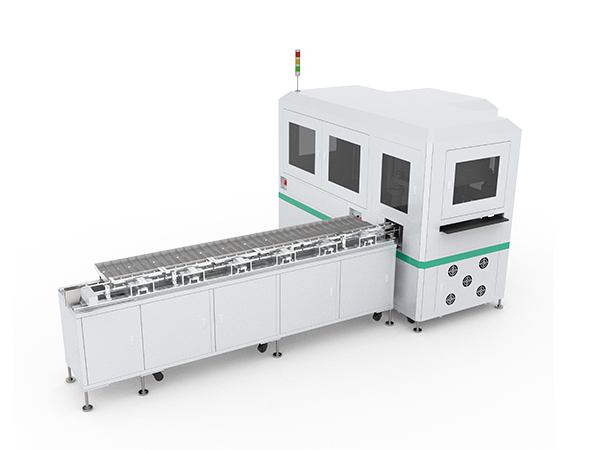

Automatic Card Punching and Sorting Machine (Paper/Plastic Card), WT-008CQFJ

Automatic Card Punching and Sorting Machine (Paper/Plastic Card), WT-008CQFJ

This automatic card punching and sorting machine is particularly suitable for manufacturing name cards, membership cards and ID cards. Suction cup holds the uppermost sheet to ensure single sheet feeding each time, facilitating automated sheets feeding process while preventing double pieces feeding. Two stepper motors allow for accurate positioning and alignment of sheets, as well as automatic cards sorting and collecting.

Inquiry

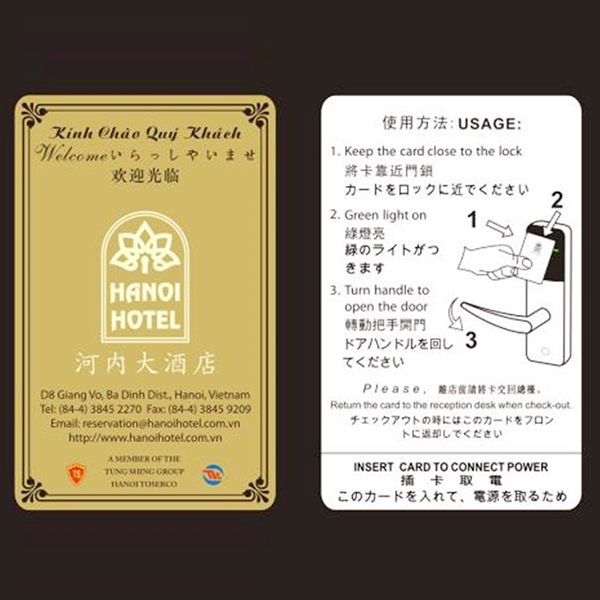

Finished Products
Specifications
Power supply AC 380V/50 HZ Sheet format 5X5/5X6/3X8/4X8 optional
Total power 12KW Control PLC control + servo/hydraulic system
Air source 6 kg/cm2 Operators needed 1
Air consumption Approx. 150L/min Dimension L2800*W2750*H1700MM
Punching pressure 2T-6T Drive Servo/hydraulic system
Weight Approx. 1500KG Punched card size Standard size, such as name card, membership card
Punching accuracy ±0.10mm Productivity 20000~55000PCS/H
Applicable card materials Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.
  • Productivity: 20000~55000PCS/H
  • Punched card size: Standard size, such as name card, membership card
  • Punching accuracy:±0.10mm
  • Sheet format: 5X5/5X6/3X8/4X8 optional
  • Punching pressure: 2T-6T
  • Control: PLC control + servo/hydraulic system
  • Dimension: L2800*W2750*H1700MM
  • Weight: Approx. 1500KG
  • Power supply: AC 380V/50 HZ
  • Total power: 2KW
  • Air source: 6 kg/cm2
  • Operators needed: 1
  • Air consumption: Approx. 150L/min
  • Drive: Servo/hydraulic system
  • Applicable card materials: Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.
Features

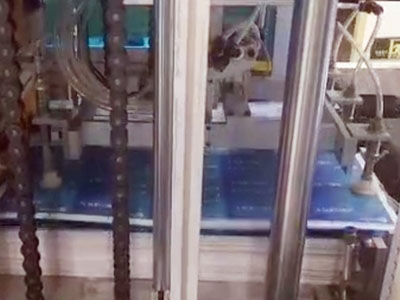

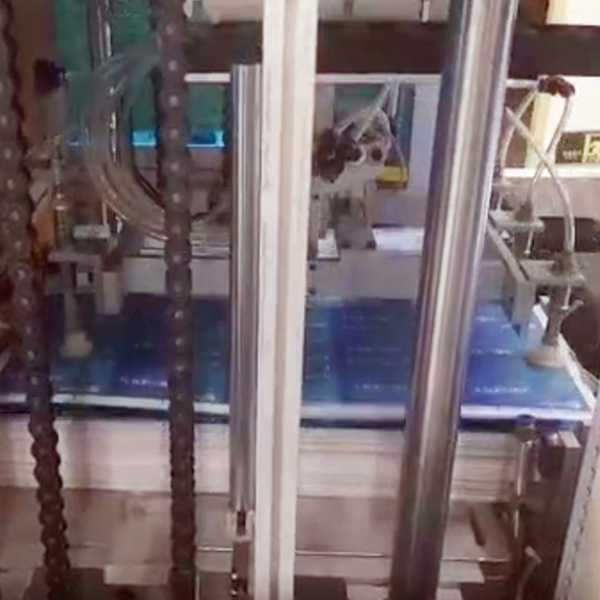

    1. Sheet feeding unit
    2. Sheet feeding unit

      Sheets are stacked onto the tray, motor drives sheet tray to accomplish feeding process;

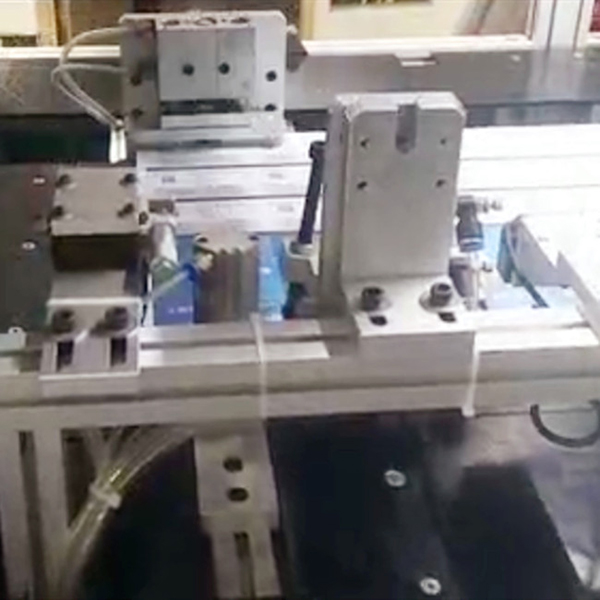

    1. Alignment unit
    2. Alignment unit

      Coupled with two stepper motors and photoelectric sensor, sheets are precisely positioned and aligned, providing high accuracy of sheet position;

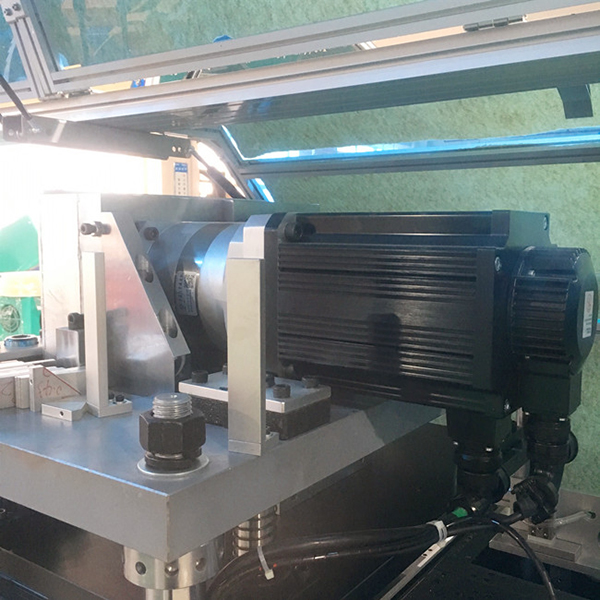

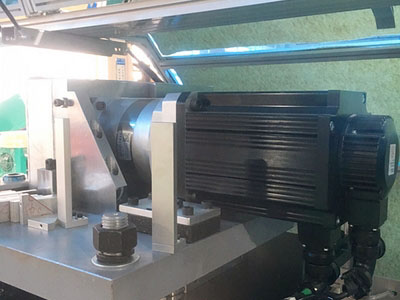

    1. Servo punching unit
    2. Servo punching unit

      High torque servo motor is adopted to guarantee stable work pressure and low noise level;

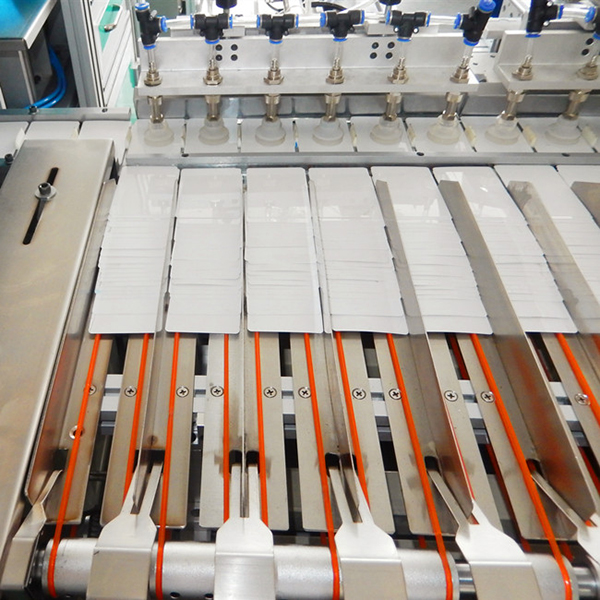

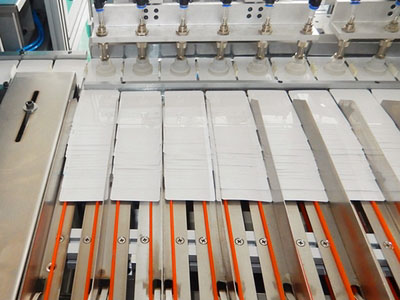

    1. Automatic sorting unit
    2. Automatic sorting unit

      Vacuum suction cup transfers and distributes sheets into sorting lanes to accomplish card collection process, eliminating the need for manual sorting;
