Automatic Card Punching Machine (Paper/Plastic Card), WT-010ZDCKJ

Automatic Card Punching Machine (Paper/Plastic Card), WT-010ZDCKJ

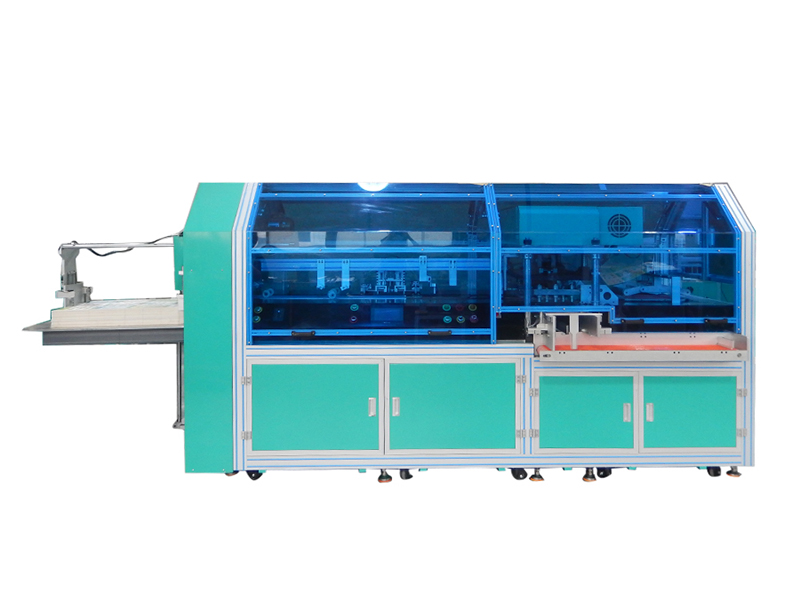

This automatic card punching machine features an automatic sheet feeder coupled with KEYENCE sensor for reliable positioning. Punched cards are created in one step through processes of card forming, corner rounding, hole punching and creasing, and can be automatically collected in an orderly manner. The card punching system is suitable for manufacturing cards of various materials of PVC, ABS, PET, as well as PVC/ABS composite materials with sizes ranging from 54*54mm to 210*210mm.

Inquiry
Finished Products
Specifications
Power supply AC 380V/50 HZ Sheet format Max. (L*W) 1100*630MM
Min. (L*W) 450*450MM
Total power 10KW Control PLC control + servo system
Air source 6 kg/cm2 Operators needed 1
Air consumption Approx. 80L/min Dimension L4450*W1500*H1850MM
Punching pressure 2T-6T Drive Servo system
Weight Approx. 1800KG Punched card size Max. 210*210MM
Min. 54*54MM
Punching accuracy ±0.10mm Productivity 25000~55000PCS/H
Applicable card materials Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.
  • Productivity: 25000~55000PCS/H
  • Punched card size: Max. 210*210MM /Min. 54*54MM
  • Punching accuracy: ±0.10mm
  • Punching pressure: 2T-6T
  • Sheet format: Max. (L*W) 1100*630MM/ Min. (L*W) 450*450MM
  • Dimension: L4450*W1500*H1850MM
  • Weight: Approx. 1800KG
  • Operators needed: 1
  • Power supply: AC 380V/50 HZ
  • Total power: 10KW
  • Control: PLC control + servo system
  • Air source: 6 kg/cm2
  • Air consumption: Approx. 80L/min
  • Drive: Servo system
  • Applicable card materials: Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.
Features

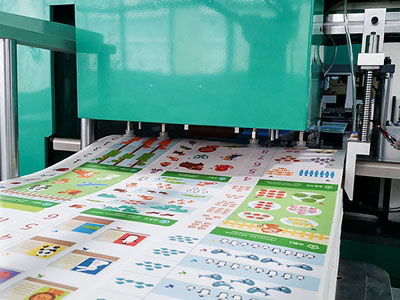

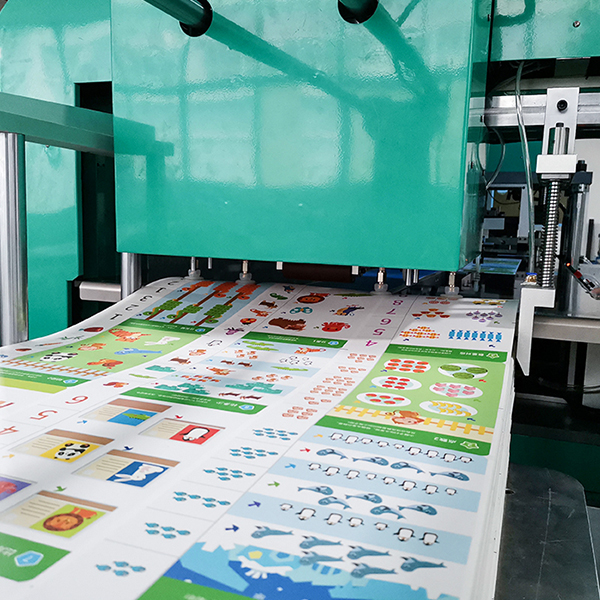

    1. Vacuum suction feeder
    2. Vacuum suction feeder

      Coupled with vacuum suction cups and stepper motor, the sheet feeder can implement automatic suction and feeding process;

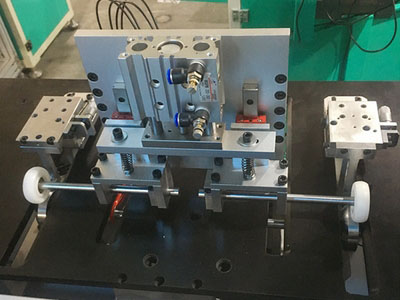

    1. Automatic alignment unit
    2. Automatic alignment unit

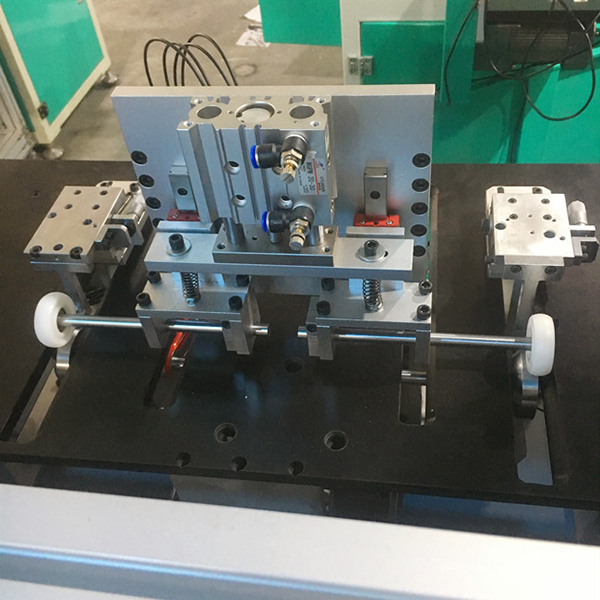

      After the sheets are fed to designated position by motor driven conveying belt, KEYENCE sensor provides automatic alignment and ensures accurate positioning;

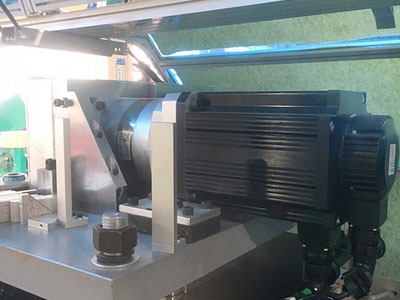

    1. Servo punching unit
    2. Servo punching unit

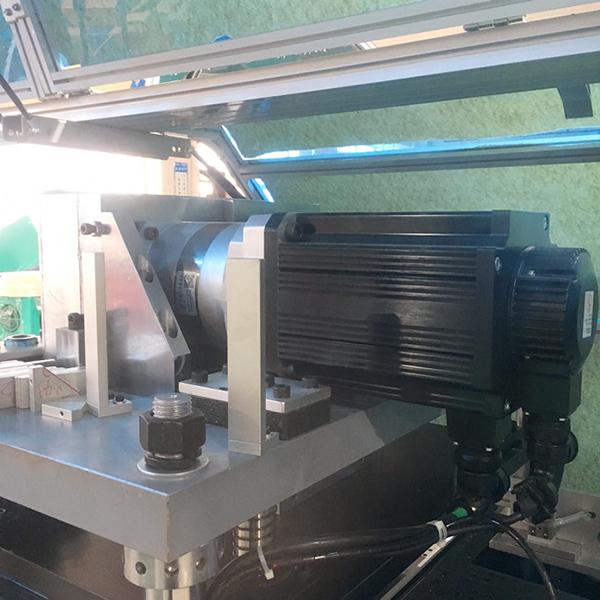

      High torque servo motor is adopted to guarantee stable work pressure and low noise level, the working speed is adjustable;

    1. Inspection unit

      The quantity of sheets to feed is guaranteed, alarm will be actuated in the event of abnormal operation;

    1. Punched card collection unit

      Specially designed card collecting structure allows punched cards to be automatically collected in an orderly manner, while the cutting scraps are automatically removed, eliminating the need for secondary sorting;
