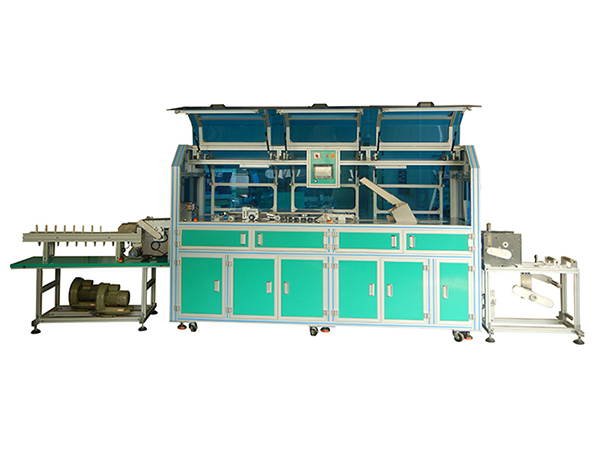

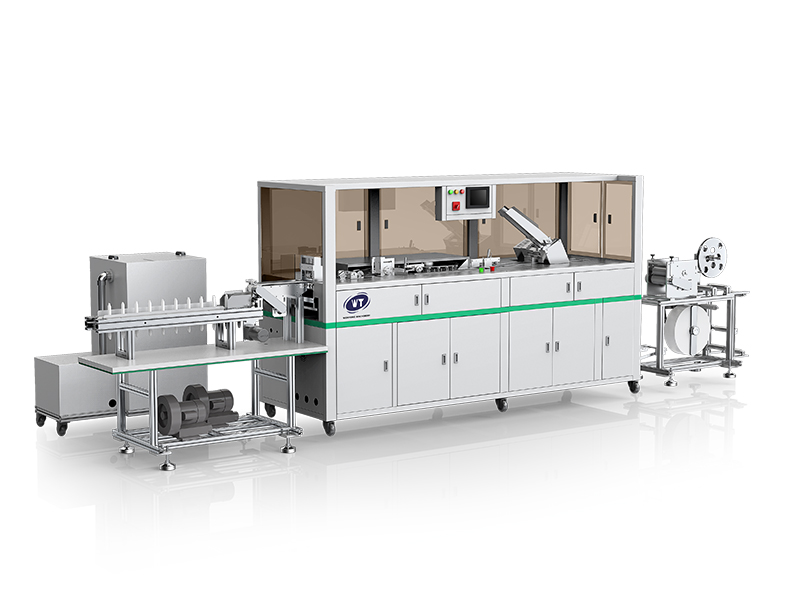

Automated Packaging Machine, Ultrasonic Sealing (30000pcs/Hour), WT-008BZJ

Automated Packaging Machine, Ultrasonic Sealing (30000pcs/Hour), WT-008BZJ

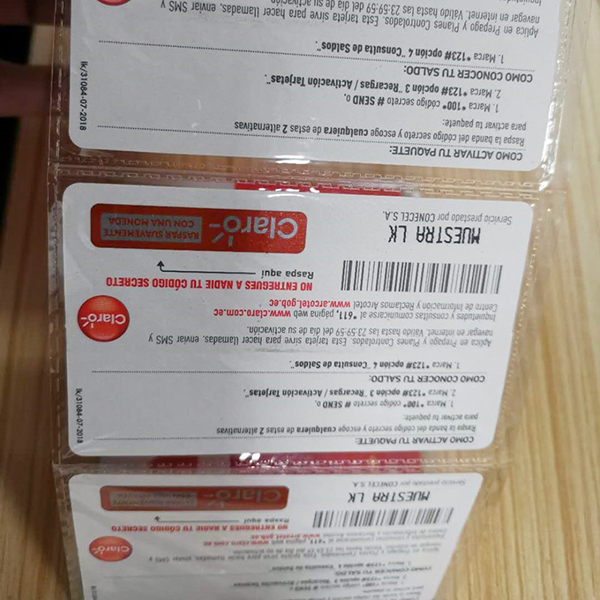

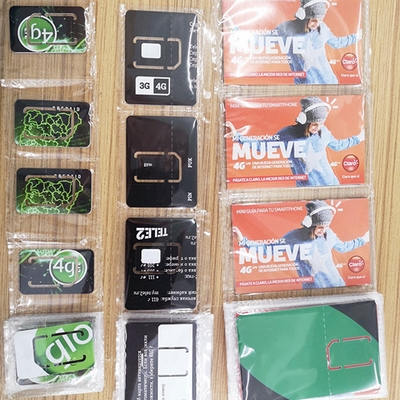

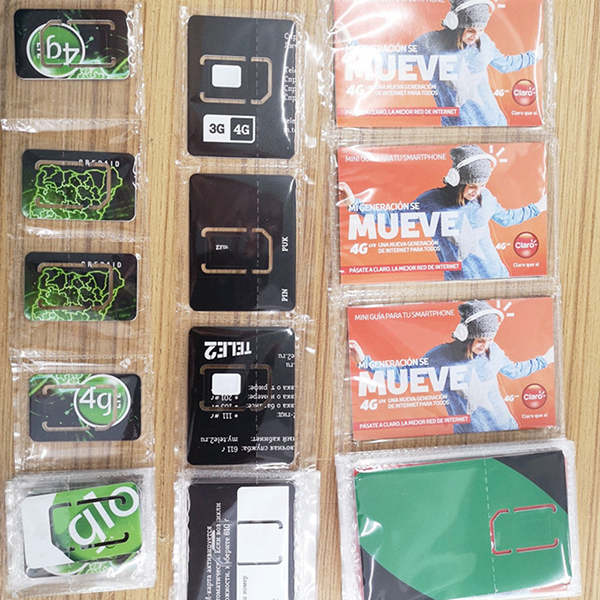

WT-008BZJ automated card packaging machine is designed with ultrasonic sealing which can offer increased seal strength and improved aesthetics. It is suitable for packaging various standard cards, such as prepaid cards, game cards, IC cards, SIM cards.

Inquiry
Samples
Specifications
Power supply AC 380V/50 HZ Card size Thickness 0.25mm~0.84mm (standard card)
Total power 3.0KW Control PLC control + servo system
Air source 6 kg/cm2 Operators needed 1
Air consumption Approx. 30L/min Dimension L4800*W980*H1860MM
Packaging film material BOPP film, etc. Packaging film thickness 0.025mm~0.035mm
Sealing method Ultrasonic sealing Productivity 30000PCS/H

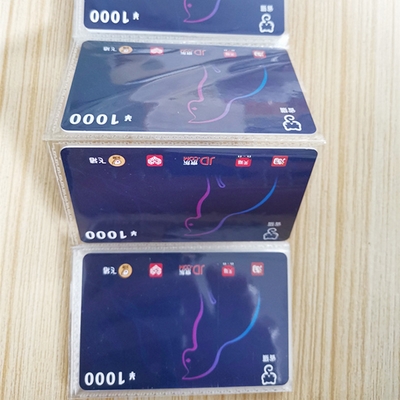

Card materials Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.
  • Productivity: 30000PCS/H
  • Card size: Thickness 0.25mm~0.84mm (standard card)
  • Card materials: Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.
  • Packaging film material: BOPP film, etc.
  • Packaging film thickness: 0.025mm~0.035mm
  • Dimension: L4800*W980*H1860MM
  • Sealing method: Ultrasonic sealing
  • Total power: 3.0KW
  • Control: PLC control + servo system
  • Air source: 6 kg/cm2
  • Operators needed: 1
  • Air consumption: Approx. 30L/min
  • Power supply: AC 380V/50 HZ

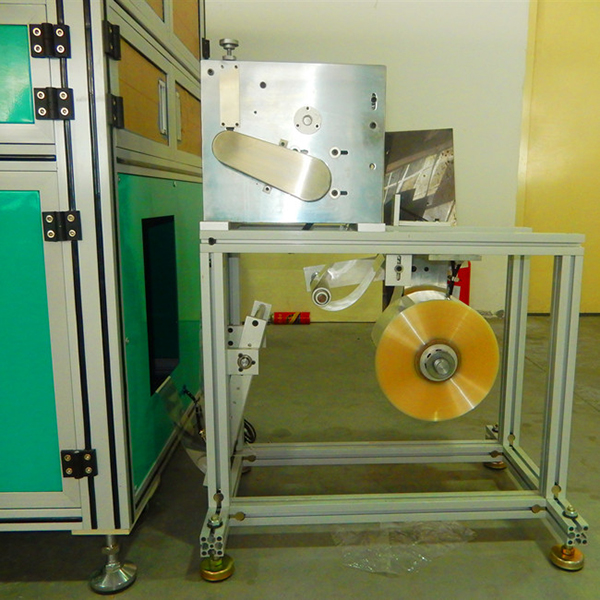

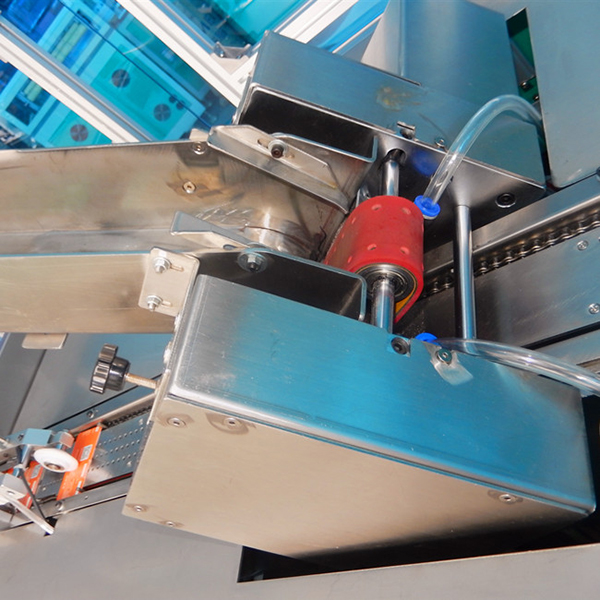

Details
