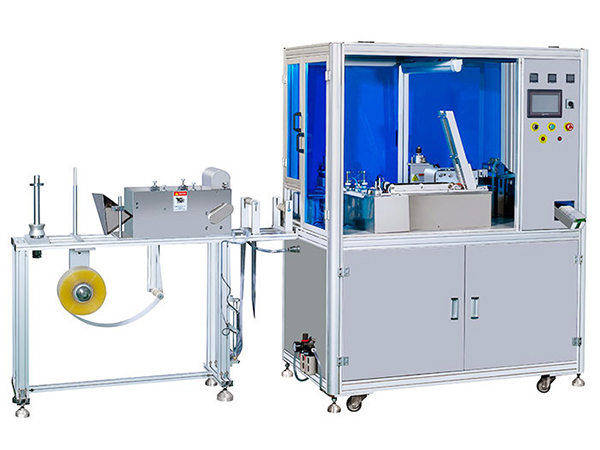

Automated Packaging Machine, Heat Sealing (10000pcs/Hour), WT-007BZJ
This automated packaging machine is a heat sealing equipment used for closing card packaging bags and pouches, suitable for a wide range of cards, such as packaging prepaid cards, game cards, IC cards, SIM cards, etc.
Samples
-

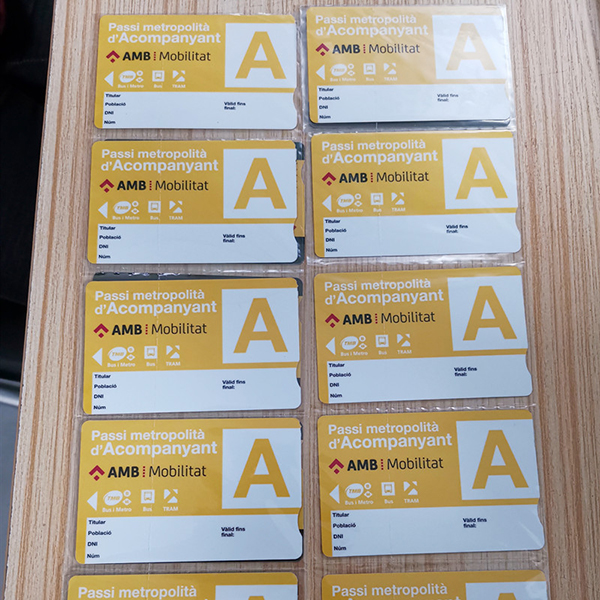

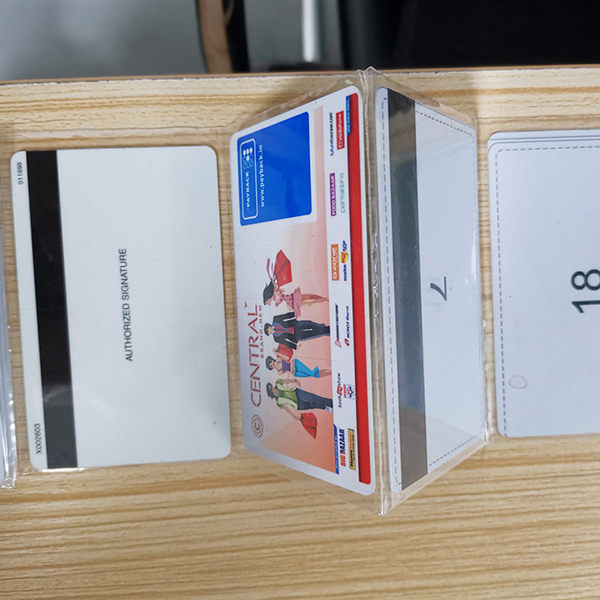

PVC cards -
Game cards -

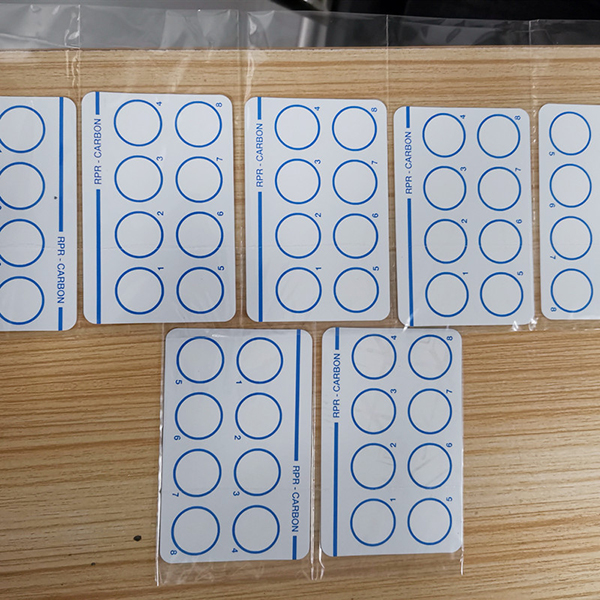

Paper cards
Specifications
| Power supply | AC 380V/50 HZ | Card size | Customized |
| Total power | 3.0KW | Control | PLC control + servo/stepper motor |
| Air source | 6 kg/cm2 | Operators needed | 1 |
| Air consumption | Approx. 30L/min | Dimension | L2400*W1500*H1700MM |
| Packaging film material | BOPP film, etc. | Packaging film thickness | 0.025mm~0.035mm |
| Sealing method | Heat sealing | Productivity | 10000PCS/H |
| Card materials | Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc. |
- Productivity: 10000PCS/H
- Card size: Customized
- Card materials: Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.
- Packaging film material: BOPP film, etc.
- Packaging film thickness: 0.025mm~0.035mm
- Sealing method: Heat sealing
- Dimension: L2400*W1500*H1700MM
- Power supply: AC 380V/50 HZ
- Total power: 3.0KW
- Control: PLC control + servo/stepper motor
- Air source: 6 kg/cm2
- Operators needed: 1
- Air consumption: Approx. 30L/min
Features
- Combining functions of film unwinding, card feeding, card packaging, and card collection;
- Suitable for paper cards and PVC cards with thickness over 0.15mm;
- Utilizing BOPP film with thickness over 0.025mm;
- Heat sealing process provides high operation speed and reliable closure;
- Automatic inspection of card shortage and double pieces in each package, the machine will immediately stop and actuate alarm when any fault occurs;
- Individual packaging or continuous strip packaging of cards are available, the quantity of cards in collection section can be pre-set;
- Dual sealing molds are adopted for higher efficiency, which are easy to changeover, packaging bag size is adjustable;
- Machine vision inspection system is optional, it can inspect and read serial number and barcode of cards;
Details
-
Feeding unit -

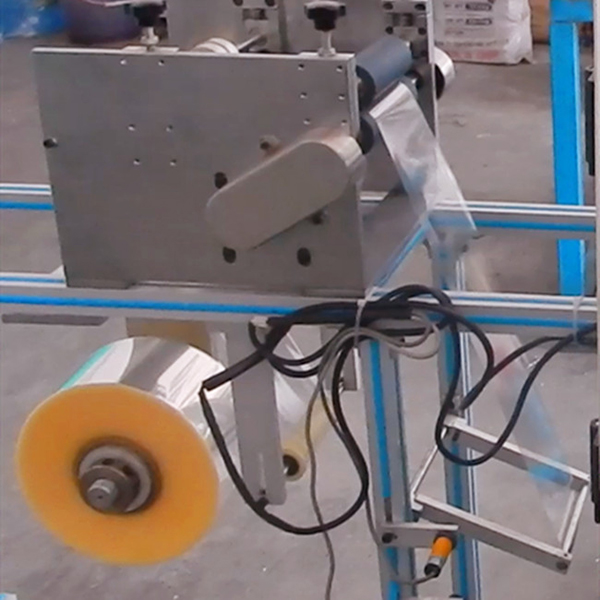

Film unwinding unit -

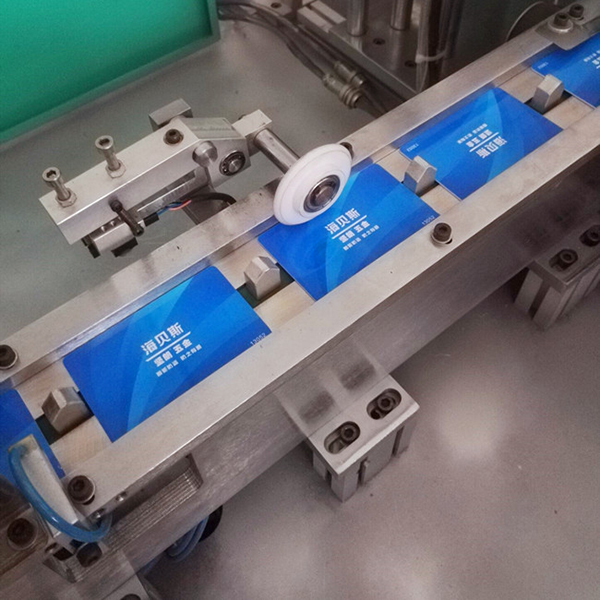

Card distributing unit -

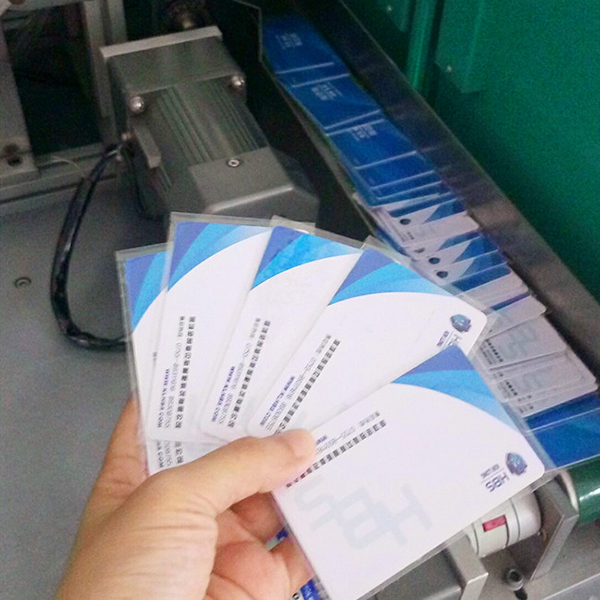

Card collection unit
Other Products
-

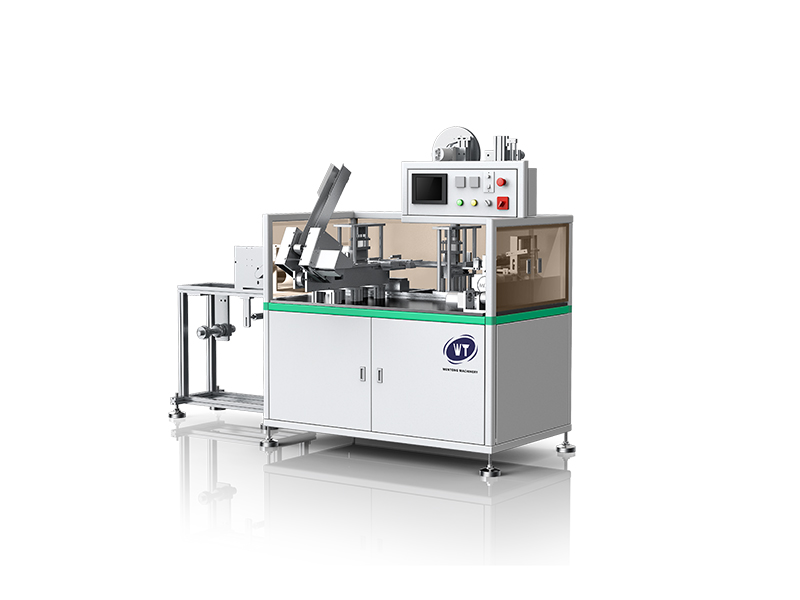

- Automated Packaging Machine, Ultrasonic Sealing (30000pcs/Hour), WT-008BZJWT-008BZJ automated card packaging machine is designed with ultrasonic sealing which can offer increased seal strength and improved aesthetics.
-
