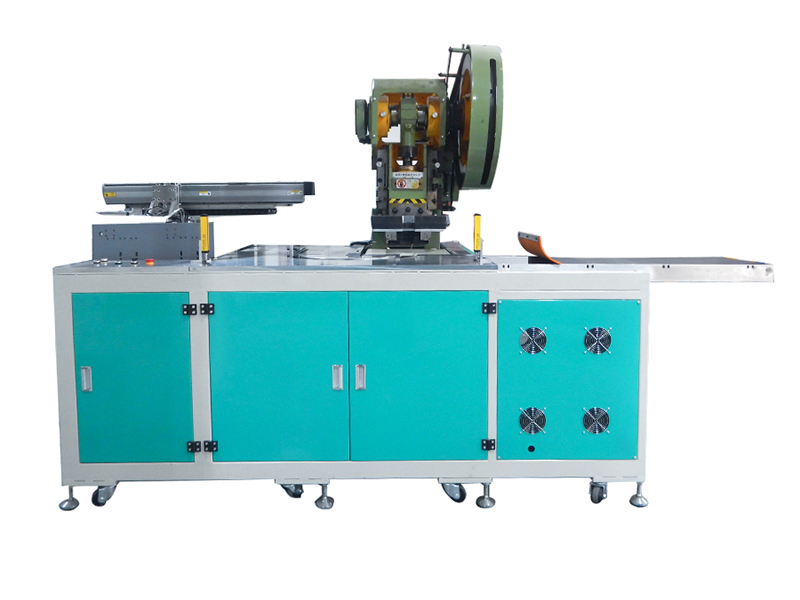

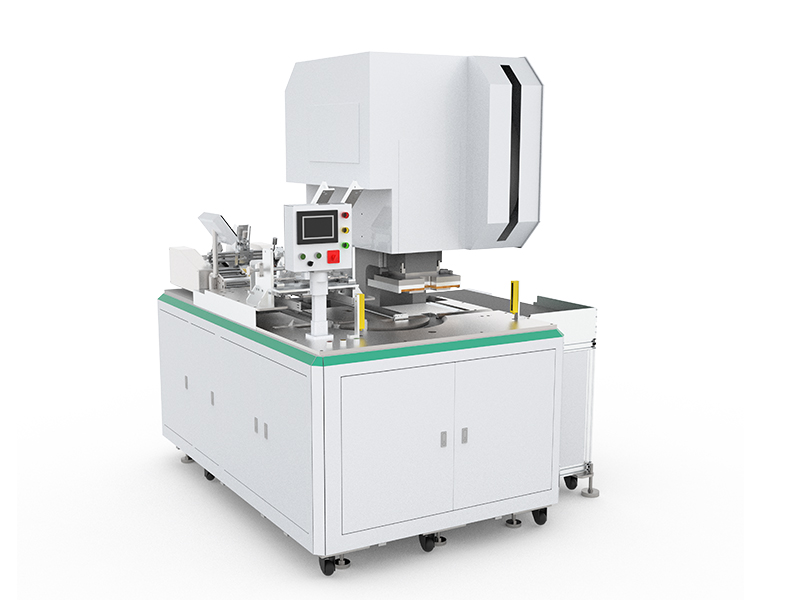

WT-009MQJ die cutting machine is designed for die cutting of various book shapes and holes, widely applied in manufacturing children’s books, board books, notebooks, saddle stitch books, paperback books, hardcover book, etc. It is capable of accomplishing precise feeding, automatic collection and scrap removal.
Power supply | AC 380V/50 HZ | Cutting tools | Metal cutting tools/wood cutting tools |
Total power | 4.5KW | Control | PLC control + servo system |
Cutting pressure | 16T | Operators needed | 1 |
Cutting accuracy | ±0.20mm | Dimension | L3550*W1650*H2250MM |
Weight | 2500KG | Books size | Max. 300X300(mm) Min. 100X100(mm) |
Book types | Board book, notebook, paperback book, hardcover book, saddle stitch book, etc. | Productivity | 2200PCS/H |
It only needs to place books on the conveying belt, the books can be automatically transferred to the designated position;
After the book is fed to designated position by motor driven conveying belt, KEYENCE sensor checks the position of the book and the SMC cylinder aligns it to ensure accurate positioning;
High torque servo motor driven clamping mechanism moves in reciprocating motion to transfer the books into die cutting station;
A range of die cutting tools is available to accommodate various book sizes, the height of cutting tool is adjustable according to the thickness of the book;
Finished books are transferred by conveying belt for manual collection;
