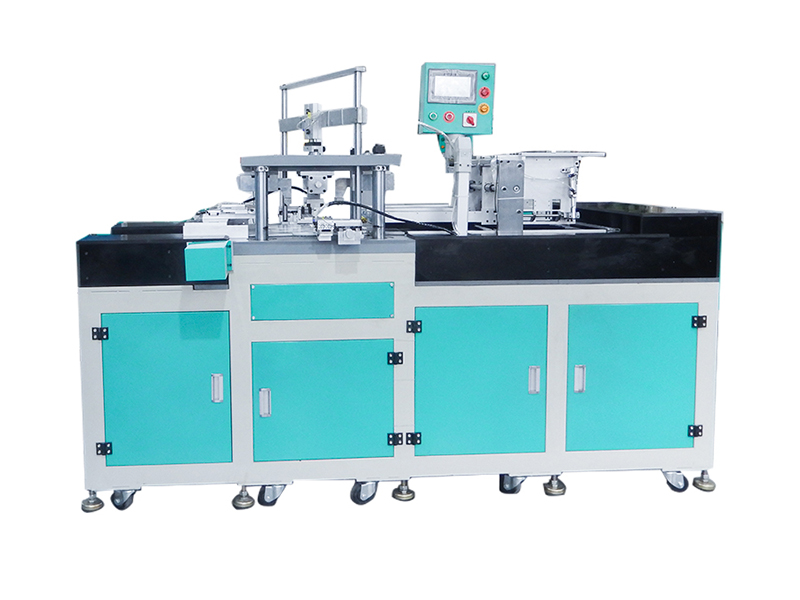

Board Book Die Cutting Machine, WT-008MQJ

Board Book Die Cutting Machine, WT-008MQJ

Our board book die cutting machine utilizes servo motor to carry out processes of precise feeding, automatic collection and scrap removal. This die cutting machine is suitable for making a variety of board books and children’s books.

Inquiry
Samples
Specifications
Power supply AC 380V/50 HZ Book sizes Max. 400X400(mm)
Min. 80X80(mm)
Total power 6.0KW Control PLC control + servo system
Cutting pressure 12T Operators needed 1
Cutting accuracy ±0.15mm Dimension L3200*W1100*H1500MM
Book types Board book, notebook, paperback book, hardcover book, saddle stitch book, perfect bound book, etc. Productivity 2000PCS/H
  • Productivity: 2000PCS/H
  • Cutting accuracy: ±0.15mm
  • Book sizes: Max. 400X400(mm)/Min. 80X80(mm)
  • Control: PLC control + servo system
  • Cutting pressure: 12T
  • Power supply: AC 380V/50 HZ
  • Total power: 6.0KW
  • Operators needed:1
  • Dimension: L3200*W1100*H1500MM
  • Book types: Board book, notebook, paperback book, hardcover book, saddle stitch book, perfect bound book, etc.
Features

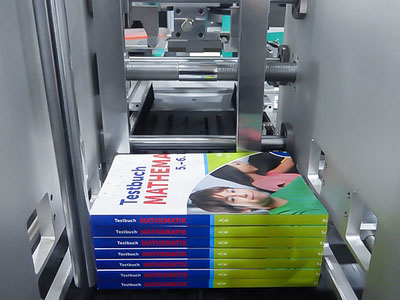

    1. Magazine of books
    2. Magazine of books

      Magazine width can be adjusted by adjustment screw according to book size, easy to operate;

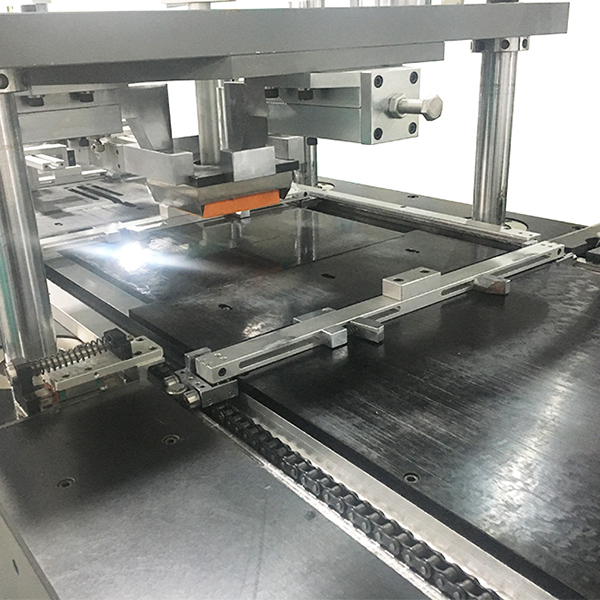

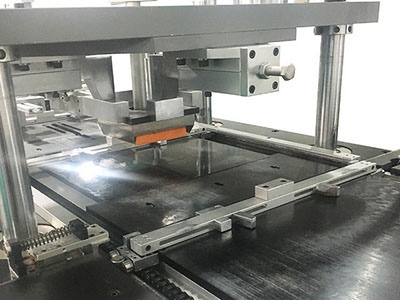

    1. Chain conveying unit
    2. Chain conveying unit

      Servo motor driven chain conveying mechanism ensures precise feeding, the position parameter is adjustable;

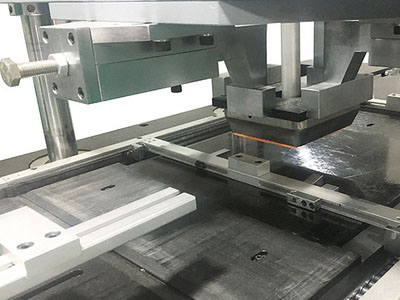

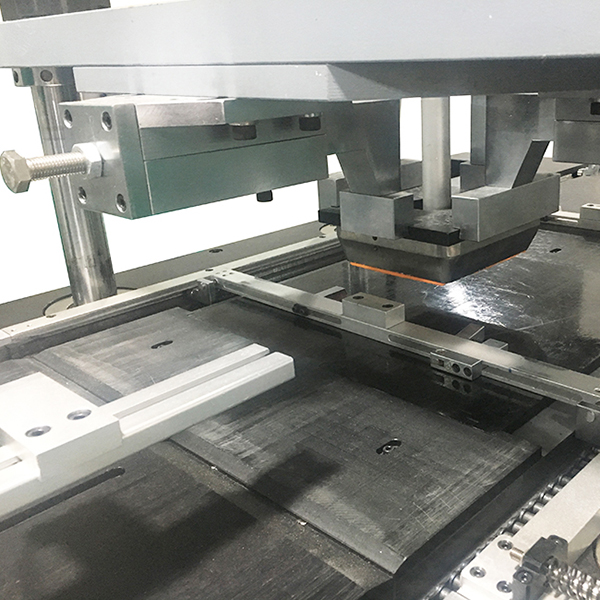

    1. Die cutting unit
    2. Die cutting unit

      Cutting tools are driven by hydraulic system to provide high precision cutting;

    1. Cylinder positioning unit

      3 sets of cylinders are used together for book positioning, the distance can be adjusted by adjustment screw;
