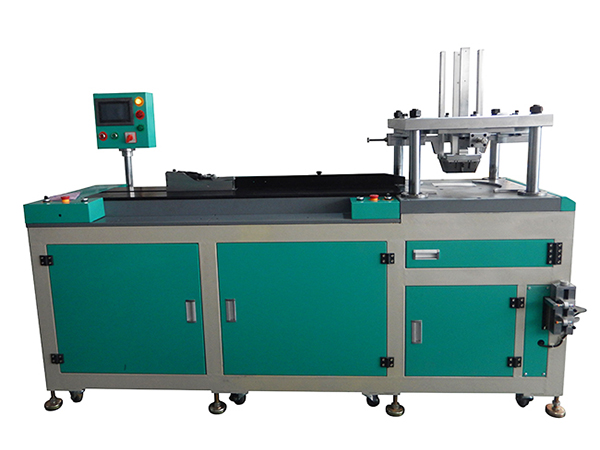

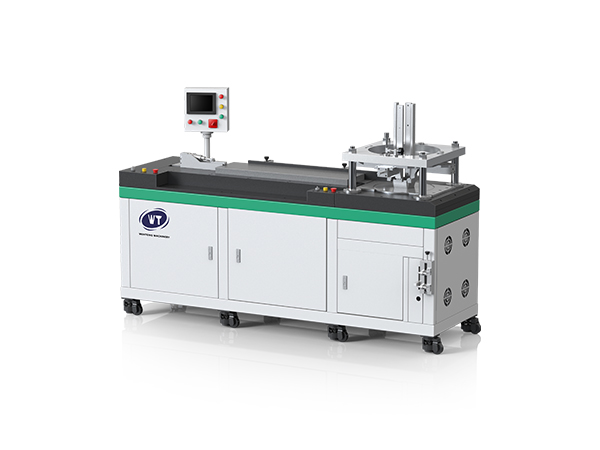

Label Die Cutting Machine, WT-007MQJ
WT-007MQJ Label die cutter is a perfect die cutting machine to produce labels, trademarks, packaging consumables,
instruction leaflets, etc.
This die cutter is capable of die-cutting multi-layer labels in one step process, thickness is up to 30mm.
Regardless of
what shape is required to be cut, the label die cutting machine can guarantee high cutting accuracy.
| Power supply | AC 380V/50 HZ | Sheet format | Max. 1200mmX300mm |
| Total power | 6.0KW | Control | PLC control + servo system |
| Cutting pressure | 12T | Operators needed | 1 |
| Cutting accuracy | ±0.15mm | Dimension | L2400*W1200*H1500MM |
| Weight | 500KG | Product size | Max. 300X300(mm) Min. 60X60(mm) |
| Applicable materials | Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc. | Productivity | 4000cuts/H |
- Productivity: 4000cuts/H
- Cutting accuracy:±0.15mm
- Product size: Max. 300X300(mm)/Min. 60X60(mm)
- Sheet format: Max. 1200mmX300mm
- Control: PLC control + servo system
- Dimension: L2400*W1200*H1500MM
- Weight: 500KG
- Power supply: AC 380V/50 HZ
- Total power: 6.0KW
- Cutting pressure: 12T
- Operators needed: 1
- Applicable materials: Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc.
-
- Sheet feeding unit
OMRON sensor works with feeding module for high accuracy of sheet position, position parameter is adjustable;
- Sheet feeding unit
-

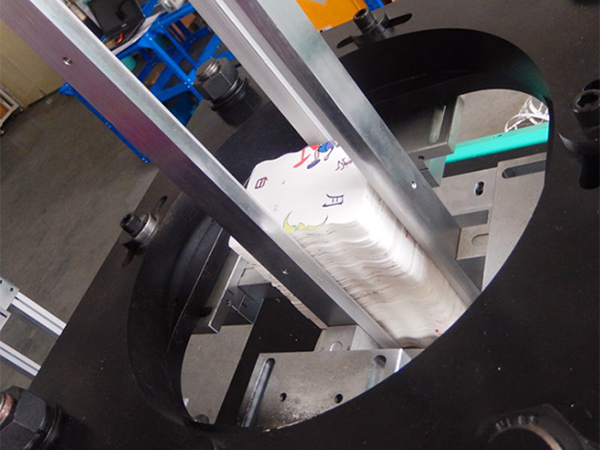

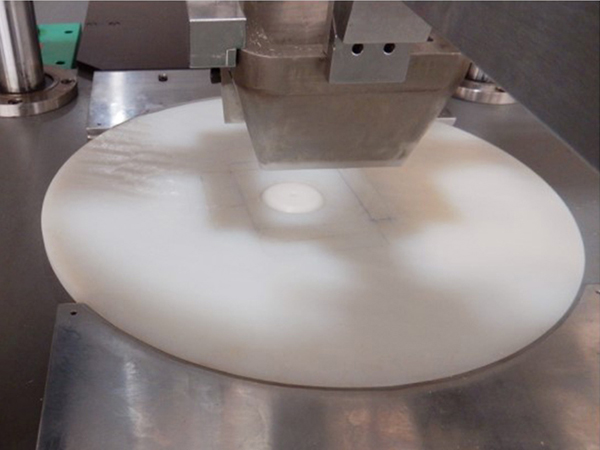

- Die cutting unit
The unit adopts hydraulic system, cutting pressure and speed are adjustable; quick tool changing can be achieved when products are varying;
-
- Collection unit
After die-cutting process, finished products are automatically collected;
-
